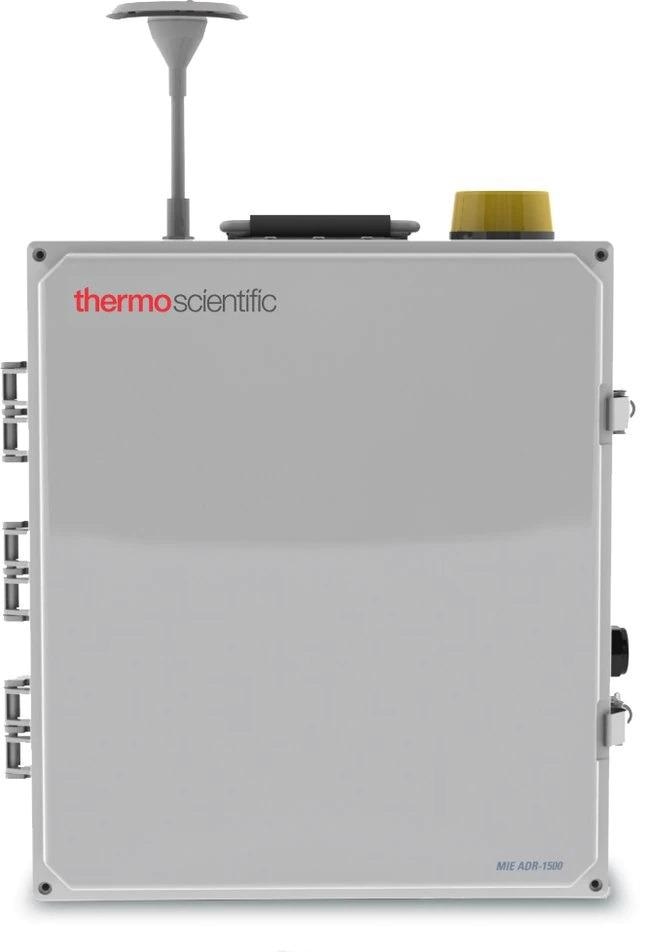

ADR1500 Area Dust Monitor

The Thermo Scientific™ ADR1500 Area Dust Monitor is an ambient, real-time instrument developed for continuous monitoring. It can be easily transported and installed.

The Thermo Scientific Model ADR1500 Dust Monitor makes use of the highly sensitive light-scattering photometer (nephelometer) technology similar to the Thermo Scientific™ pDR series.

The intensity of the light scattered by airborne particles that pass via the sensing chamber is linearly proportional to their concentration. This optical configuration generates an ideal response to particles, thereby offering continuous measurements of the concentrations of airborne particles for total particulate and cut-points varying from PM10 down to PM1.

The ADR1500 houses a temperature and relative humidity (RH) sensor together with an internal heater to reduce the positive bias with high ambient RH. Moreover, the flow control is truly volumetric and maintained through digital feedback of the onboard barometric pressure sensor, temperature sensor and calibrated differential pressure over a precision orifice.

The principles of true volumetric flow, as integrated by the ADR1500, lead to a precise sample volume and accurate particle cut-point.

Key Features

  • Modular optics and long-life primary HEPA filter available for easy servicing
  • Durable and weatherproof IP65 enclosure
  • Volumetric flow control is enabled
  • Multiple power and communications abilities are provided

Additional Information

  • The quantified concentration of particulate matter is shown in real-time on the two-line LCD readout display
  • The small and durable instrument is ready for quick deployment and unattended operation
  • Extra values can be displayed: run start time and date, time-averaged concentrations, elapsed run time and many more
  • Comes with communications options for USB, RS-232, analog and wireless capability
  • A top-mounted handle enables simple transportation and installation with mounting options provided for post, wall or tripod locations
  • Flexible power capacity enables the ADR1500 to function on AC (100–240 VAC), internal battery or external DC (12–24 VDC)

Recommended for

  • Fugitive dust monitoring
  • Site remediation
  • Area monitoring
  • Alarm conditions
  • Perimeter monitoring
  • Exposure monitoring
  • Asthma studies
