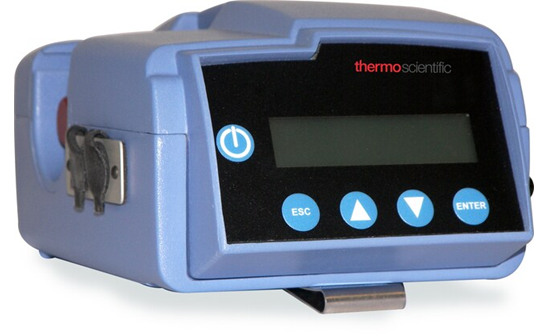

A completely integrated, real-time, high-precision sampling device with optimal usability and extended running time is the Thermo Scientific™ Personal DataRAM pDR-1500 Portable Monitor.
Product Overview
The pDR-1500 is capable and adaptable enough to deliver gravimetric validation and real-time findings for various applications, including construction/demolition projects, health impacts research, and site remediation monitoring. It weighs 41 ounces, making it as simple to run in a fixed spot as it is to wear on the belt.
With its real volumetric flow, pressure adjustment, relative humidity correction, and legacy pDR nephelometry technology, the pDR-1500 can compensate for all common environmental factors. Along with an inbuilt sample filter that allows post-gravimetric validation of all data, the pDR-1500 aerosol monitor also has cyclones that can be swapped out for better particle-cut points for PM2.5 & PM1 or PM10 & PM4.
Key Features
- Flexible data logging routine
- True volumetric flow control
- Full compensation for environmental variables
Additional Information
- Aerodynamic Particle Cut-Point Range 1.0 to 10 μm
- Number of Data Tags: 99 (maximum)
- Serial Interface: USB/RS-232, 19,200 baud
- Computer Requirements: PC compatible, 486 processor or higher; Windows™ 95 or higher
- Concentration Display Updating Interval: 1 second
- Data Logging Averaging Periods (user selectable): 1 second to 1 hour
- Total Number of Data Points in Memory: >500,000
Recommended for
- Exposure modeling
- Protection of asthma patients
- Site remediation
- Size discrimination
- Mass validation
Specifications
Source: Thermo Fisher Scientific – Environmental and Process Monitoring Instruments
| . |
| Flow Rate |
1 to 3.5 L/min. |
| Accuracy |
±5% of reading ± precision (traceable to SAE Fine Test Dust) |
Aerodynamic Particle
Cut-Point Range |
1.0 to 10 μm |
| Certifications/Compliance |
Suitable for NIOSH Methods 0500 and 0600. CE marked. UKCA |
Concentration Display
Averaging Time |
1 to 60 seconds (user selectable) |
Concentration Display
Updating Interval |
1 second |
Concentration
Measurement Range |
0.001 to 400 mg/m3 range (auto ranging)1 |
| Data Points |
>500,000 |
| Depth (English) |
3.3 in. |
| Depth (Metric) |
84 mm |
| Description |
personalDataRAM pDR-1500 Aerosol Monitor |
| Height (English) |
7.1 in. |
| Height (Metric) |
181 mm |
| Particle Size Range |
0.1 to 10 µm |
| Precision |
±2% of reading or ±0.005 mg/m3, whichever is larger, for 1 second (2-sigma)2 averaging time, ±0.5% of reading or ±0.0015 mg/m3, whichever is larger, for 10 second averaging time, ±0.2% of reading or ±0.0005 mg/m3, whichever is larger, for 60 second averaging time |
| Resolution |
0.1% of reading or 0.001 mg/m3, whichever is larger |
Scattering Coefficient
Range |
1.5 x 10-6 to 0.6 m-1 (approx.) @ lambda= 880 nm (not displayed) |
| Weight (English) |
41 oz. |
| Weight (Metric) |
1.2 kg |
| Width (English) |
5.6 in. |
| Width (Metric) |
143 mm |
| Unit Size |
Each |
