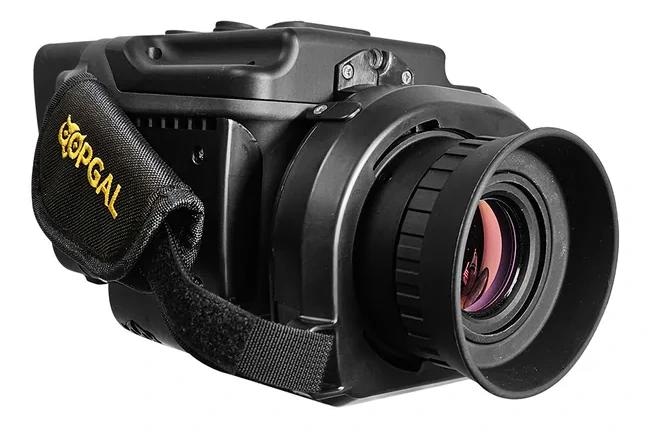

Thermo Fisher Scientific presents the world's most sensitive handheld OGI camera: the OPGAL EyeCGas™ Multi Optical Gas Imaging Camera. It quickly detects fugitive gas emissions from more than 400 VOCs and hydrocarbon gases, such as CO2 and methane.
Product Overview
This intrinsically safe camera provides unrivaled connection, superior thermography, and multi-spectral filters for diverse applications in extreme conditions. Real-time gas detection and quantification ensure compliance with EPA guidelines while improving safety. Invest in dependability with a four-year guarantee and receive free firmware upgrades for continuous enhancement.
The OPGAL EyeCGas™ Multi Optical Gas Imaging Camera aims to improve gas leak detection and environmental safety. This cutting-edge handheld camera is the most sensitive OGI camera available, detecting more than 400 hydrocarbon and VOC chemicals, including methane and CO2. The EyeCGas™ Multi is ideal for industrial applications, enabling real-time gas detection and quantification to ensure regulatory compliance and operational safety.
Key Features and Benefits
- Exceptional Sensitivity: The EyeCGas™ Multi is the world’s most sensitive portable optical gas imaging camera. It can detect even the slightest gas leaks.
- Intrinsically Safe: Certified for usage in hazardous areas, which ensures operational safety and dependability
- Advanced Connectivity: Real-time data integration with advanced connectivity options enables seamless communication and data transmission
- Versatile Use: Multi-spectral filters and superior thermography make it appropriate for a variety of applications and situations
- Regulatory Compliance: Helps fulfill EPA fugitive gas emissions regulations, assuring compliance and avoiding costly fines
- Durable Design: Built to survive tough settings, with a strong structure and good resilience to environmental variables
- Warranty and Support: Comes with a four-year guarantee and free firmware upgrades to ensure long-term dependability and continual development
Intended Use
The EyeCGas™ Multi is ideal for detecting and measuring gas leaks across sectors such as oil and gas, petrochemicals, and environmental monitoring. It improves safety and operating efficiency by offering accurate and rapid gas detection.
Includes
- The EyeCGas™ Multi Optical Gas Imaging Camera is the principal instrument for gas detection
- Carrying Case: Provides safe and convenient transporting
- Battery Pack: Rechargeable battery for extended use
- Charger: For recharging the battery pack
- User Manual: Comprehensive guide for using the camera
The OPGAL EyeCGas™ Multi Optical Gas Imaging Camera is a proven solution for detecting gas leaks while maintaining environmental safety and regulatory compliance. Invest in cutting-edge technology to safeguard both the company and the environment.
Videos
Introducing Opgal EyeCGas Multi OGI Camera. Video Credit: Thermo Fisher Scientific – Environmental and Process Monitoring Instruments
Fugitive Emissions Regulations. Video Credit: Thermo Fisher Scientific – Environmental and Process Monitoring Instruments
Toxic Vapor Analysis. Video Credit: Thermo Fisher Scientific – Environmental and Process Monitoring Instruments
Specifications
Source: Thermo Fisher Scientific – Environmental and Process Monitoring Instruments
| . |
| Accuracy |
At least ±1° (0 to 100°), ± 2% (>100°), ±2° (-20 to 0°) |
| Battery Life |
>4.5 hours continuous operation |
Certifications/
Compliance |
Hazardous Location Compliance - CSA C22.2 No. 213-M1987, NonIncentive Electrical Equipment for Use in Class I, Division 2, ANSI/ ISA-12.12.01 – Class I and II, Division 2, and Class III, ATEX. Intrinsically safe for Zone 2 ratings as: Ex II 3 GD; Ex ic nA nC IIC T6 Gc; Ex ic tc IIIC T85° DCSpectral Range 3.1 μm to 4.4 μm. Optical filters Std. 3.2-3.5 μm; Long range 3.3-3.6 μm; CO2 4.1-4.4 μm |
| Color |
Grey and black battery |
| Detector Type |
Cooled High Sensitivity, 320 x 240 pixels |
| Dimensions (L x W x H) |
9 x 4.3 x 5.1 in. (230 x 110 x 130 mm) |
| Type |
Gas Detector |
| Display Type |
3.5 in. color LCD 640 x 480; 6 color palettes (Rainbow, Iron, ISO red, ISO green, Grey Scale and Vivid) |
For Use With
(Application) |
Image processing VOC gas quantification for desktop or handheld application (offline/online operation) |
| Humidity Range |
IEC 60068-2-30 Temp. 25° /40°
Humidity 95% RH |
| IP Rating |
IP65 |
| Measurement Range |
Spot temperature measurement -20 °C to +350 °C |
| Mounting Options |
Tripod mounting UNC 1/4 in., rotation safe |
| Temperature Range (Metric) |
Operating Temperature Range: -20 °C to +50 °C |
| Voltage |
7.4 V |
| Weight (English) |
5.9 lbs. |
| Weight (Metric) |
2.6 kg |
| Unit Size |
Each |
