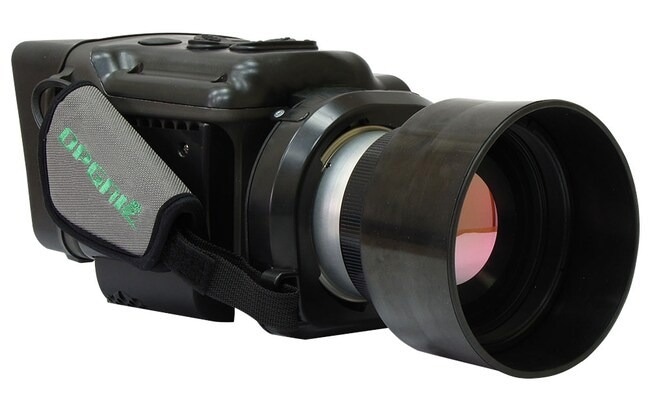

The OPGAL EyeCGas™ 2.0 Long Range Optical Gas Imaging Camera, distributed by Thermo Fisher Scientific, is reliable and intrinsically safe for detecting gas leaks over great distances. It is designed to withstand harsh industrial conditions and can detect methane, CO2, and over 400 VOCs.
With replaceable multi-spectral filters, temperature measurement capabilities, and superior image processing, it facilitates precise leak identification and quantification from remote locations using built-in tools or EyeCSite software.
The EyeCGas 2.0 Long Range Optical Gas Imaging Camera is intended for accurate leak detection in severe oil, gas, and industrial applications. Its ruggedized structure, intrinsically safe design, and multi-spectral optical capabilities make it an effective option for detecting methane, CO2, and VOCs, particularly in long-range and humid environments. The device allows for real-time and offline gas measurement, interfaces smoothly with numerous LDAR systems, and includes enhanced thermographic imaging for further adaptability.
Key Capabilities and Benefits
- Advanced connectivity: Integrated Wi-Fi, GPS, hotspot, Bluetooth 4.2, USB data transfer, and app compatibility
- Video streaming and recording: Supports IR and visual video, with radiometric streaming over Wi-Fi
- LDAR ready: Compatible with LDAR software and devices such as RMLD and TVA2020
- Free firmware upgrades: Includes ongoing camera improvements at no additional cost
- Quick, sensitive gas detection: Detects methane, CO2, and 400+ VOCs with high sensitivity (< 10 mK NETD). Interchangeable filters improve the detection of methane, VOCs, and CO2.
- Long-range telephoto performance: The 7.5 ° field-of-view lens produces excellent images across long distances
- Multi-spectral OGI technology: Only OGI camera with user-replaceable spectral filters for improved target-specific identification
- Thermographic imaging: Measures temperatures up to 350 °C (662 °F) with multiple color palettes and HSM noise-reduction mode
- Rugged and intrinsically safe: Certified IECEx Zone 2, Class I/II/III Division 2, CSA, and ATEX
- Gas quantification tools: Built-in real-time and offline quantification using EyeCSite QOGI software or third-party analytic tools
Specifications
Source: Thermo Fisher Scientific – Environmental and Process Monitoring Instruments
| |
|
| Accuracy |
± 1 °C (0 to 100 °C); ± 2 % (> 100 °C); ± 2 °C (-20 to 0 °C) |
| Battery Life |
> 4.5 hours continuous |
| Certifications/Compliance |
CSA C22.2 No. 213-M1987, Non-Incentive Electrical Equipment for Use in Class I, Division 2, ANSI/ ISA-12.12.01 – Class I and II, Division 2, and Class III, ATEX. Intrinsically safe for Zone 2 ratings as: Ex II 3 GD; Ex ic nA nC IIC T6 Gc; Ex ic tc IIIC T85 °C DC |
| Detection Limits |
Cooled MCT FPA |
| Detector Type |
Detector pitch: 30 µm |
| Dimensions (L x W x H) |
230 x 110 x 130 mm (9 x 4.3 x 5.1 in) |
| Display Type |
3.5 in. LCD (640 x 480) |
| IP Rating |
IP65 |
| Mounting Options |
UNC 1/4in. -20 |
| Resolution |
IR resolution: 320 x 240 pixels |
| Temperature Range (Imperial) |
-4 °F to 662 °F |
| Temperature Range (Metric) |
-20 °C to 350 °C |
| Voltage |
7.4 V |
| Weight (Imperial) |
6.6 lb |
| Weight (Metric) |
3 kg |
| Components Measured |
Methane |
| Type |
Gas detector |
| Unit Size |
Each |
