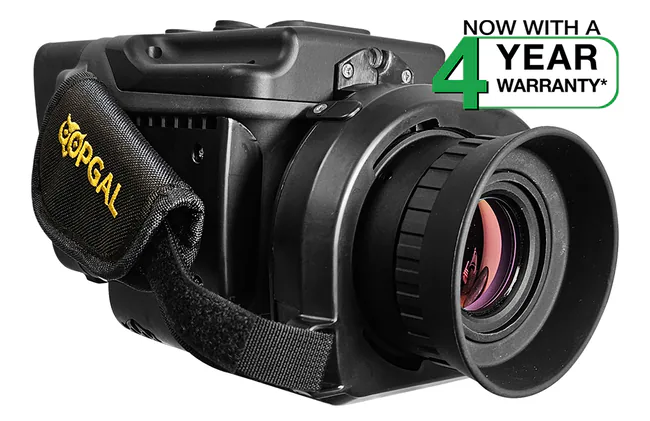

The OPGAL EyeCGas™ CO Optical Gas Imaging Camera, distributed by Thermo Fisher Scientific, is an intrinsically safe, durable, and dependable solution for detecting carbon monoxide leakage in hazardous industrial situations. Designed to detect CO remotely, it improves safety, reduces downtime, and helps prevent dangerous emissions.
With multi-spectral OGI capabilities, thermographic imaging, built-in quantification tools, and seamless connectivity, the EyeCGas CO camera enables rapid leak diagnosis, verification, and reporting in demanding oil, gas, and manufacturing applications, including the steel industry.
The EyeCGas CO handheld optical gas imaging (OGI) camera combines superior spectral filtering, a durable design, and high-sensitivity thermal imaging to provide exceptional carbon monoxide leak detection.
Key Capabilities and Benefits
- Built-in quantification: Real-time and offline CO quantification are enabled via built-in tools, EyeCSite software, and compatible LDAR systems
- Connectivity: Built-in Wi-Fi, hotspot, GPS, USB data transfer, and Bluetooth 4.2
- Rugged and sealed: Sealed to IP65 standards and designed for gas leak detection in harsh oil and gas environments
- LDAR ready: Integrates with TVA2020, RMLD, and other LDAR devices
- Free firmware upgrades: Receives continual software enhancements based on feedback from customers
- CO and CO2 leak detection: Identifies carbon dioxide and carbon monoxide quickly for emissions monitoring, safety, and compliance
- Thermographic imaging: Supports temperature monitoring and better display by employing several color palettes
- Multi-spectral OGI: Replaceable spectral filters optimized for CO, enabling superior target-specific detection
- Intrinsically safe: Certified for IECEx Zone II, ANSI, and CSA Class I & Class II Division 2 hazardous locations
Specifications
Source: Thermo Fisher Scientific – Environmental and Process Monitoring Instruments
| . |
. |
| Accuracy |
± 1 °C (0 to 100 °C); ± 2 % (> 100 °C); ± 2 °C (-20 to 0 °C) |
| Battery Life |
> 4.5 hours continuous operation |
| Battery Type |
Rechargeable Li-ion, 7.4 V |
| Certifications/Compliance |
CSA C22.2 No. 213-M1987, Non-Incentive Electrical Equipment for Use in Class I, Division 2, ANSI/ ISA-12.12.01 – Class I and II, Division 2, and Class III, ATEX. Intrinsically safe for Zone 2 ratings as: Ex II 3 GD; Ex ic nA nC IIC T6 Gc; Ex ic tc IIIC T85 °C DC |
| Color |
Rainbow, iron, ISO red, ISO green, gray scale, vivid |
| Detector Type |
Detector pitch: 30 µm |
| Dimensions (L x W x H) |
230 x 110 x 130 mm (9 x 4.3 x 5.1 in.) |
| Display Type |
3.5 in. LCD, 640 x 480 pixels |
| IP Rating |
IP65 |
| Includes |
Camera, two batteries, charger, USB cable, neck strap, glare shield, carrying case, cleaning kit |
| Mounting Options |
UNC 1/4 in. -20 |
| Resolution |
IR resolution: 320 × 240 pixels |
| Temperature Range (English) |
-4 °F to 662 °F |
| Temperature Range (Metric) |
-20 °C to 350 °C |
| Voltage |
7.4 V |
| Warranty |
Four years (detector and cooler: two years; batteries: one year) |
| Weight (English) |
5.9 lb |
| Weight (Metric) |
2.6 kg |
| Components Measured |
Carbon monoxide, carbon dioxide |
| Type |
Multigas detector |
| Unit Size |
Each |
