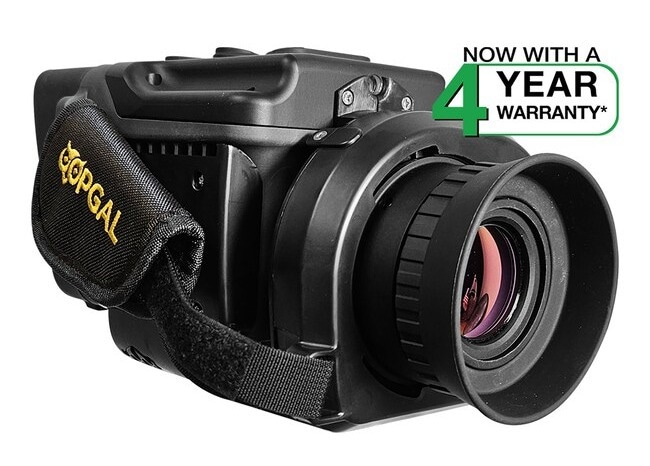

For industrial operations, the OPGAL EyeCGas™ CO2 Optical Gas Imaging Camera, distributed by Thermo Fisher Scientific, offers a quick, dependable, and inherently safe way to find carbon dioxide leakage. The camera, which was designed for use in dangerous settings, allows users to detect even extremely low CO2 concentrations from a safe distance.
The EyeCGas CO2 camera helps minimize downtime, prevent expensive emissions, and improve inspection efficiency with its multispectral OGI capabilities, thermographic imaging, integrated quantification, and seamless communication.
It is an effective instrument for CO2 leak detection and verification, especially for carbon capture, utilization, and storage (CCUS) applications, thanks to its sturdy, sealed structure and compliance with LDAR processes.
The OPGAL EyeCGas CO2 Optical Gas Imaging Camera was specifically engineered to detect carbon dioxide in dangerous and demanding industrial environments. It offers outstanding performance for CO2 leak diagnosis, verification, and quantification by combining robust engineering, sophisticated spectral filtering, and high-sensitivity thermographic imaging.
Key Capabilities and Benefits
- CO2 leak detection: Detects minute CO2 amounts quickly, assisting with safety, maintenance, and emissions prevention programs
- Thermographic imaging: Features many color schemes for improved visualization and the ability to track temperature
- Multi-spectral OGI: Replaceable spectral filters designed for CO2 using dedicated 4.1–4.4 µm and optional 4.0–4.7 µm ranges
- Intrinsically safe: Certified for IECEx Zone II, ANSI, CSA Class I & Class II Division 2, and ATEX hazardous environments
- Built-in quantification: Real-time and offline quantification supported via built-in tools, EyeCSite software, or compatible third-party systems
- Connectivity: Built-in Wi-Fi, GPS, hotspot, Bluetooth, and USB data transfer
- LDAR ready: Integrates with a number of software systems and analyzers
- Rugged and sealed: Engineered primarily for gas leak detection in harsh oil and gas environments
- Free firmware upgrades: Get camera enhancements at no extra charge
Specifications
Source: Thermo Fisher Scientific – Environmental and Process Monitoring Instruments
| |
|
| Accuracy |
± 1 °C (0 to 100 °C); ± 2 % (> 100 °C); ± 2 °C (-20 to 0 °C) |
| Battery Life |
> 4.5 hours continuous operation |
| Battery Type |
Rechargeable Li-ion, 7.4 V |
| Certifications/Compliance |
CSA C22.2 No. 213-M1987, Non-Incentive Electrical Equipment for Use in Class I, Division 2, ANSI/ ISA-12.12.01 – Class I and II, Division 2, and Class III, ATEX. Intrinsically safe for Zone 2 ratings as: Ex II 3 GD; Ex ic nA nC IIC T6 Gc; Ex ic tc IIIC T85 °C DC |
| Color |
Rainbow, iron, ISO red, ISO green, gray scale, vivid |
| Detection Limits |
Detector pitch: 30 µm |
| Detector Type |
Cooled MCT FPA |
| Dimensions (L x W x H) |
230 x 110 x 130 mm (9 x 4.3 x 5.1 in.) |
| Display Type |
3.5 in. LCD, 640 x 480 pixels |
| IP Rating |
IP65 |
| Includes |
Camera, two batteries, charger, USB cable, neck strap, glare shield, carrying case, cleaning kit |
| Measurement Range |
-20 °C to 50 °C |
| Mounting Options |
UNC 1/4 in. -20 |
| Optical Filters Standard |
Standard: 4.1–4.4 µm for CO2
Optional: 4.0–4.7 µm |
| Resolution |
IR Resolution: 320 x 240 pixels |
| Temperature Range (English) |
-4 °F to 662 °F |
| Temperature Range (Metric) |
-20 °C to 350 °C |
| Voltage |
7.4 V |
| Warranty |
Four years (detector and cooler: two years; batteries: one year) |
| Weight (English) |
5.9 lb |
| Weight (Metric) |
2.6 kg |
| Components Measured |
Carbon monoxide |
| Type |
Gas detector |
| Unit Size |
Each |
