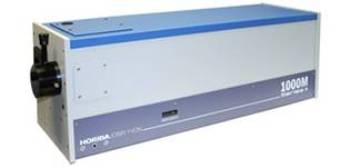

1000M, Series II High Resolution Research Spectrometer from HORIBA

HORIBA Scientific has released the 1000M, Series II high resolution research spectrometer which is suitable for applications requiring very low stray light levels. For instance, the instrument can be used when extremely high resolution is required for analyzing emission structure or can be employed in Raman fluorescence excitation. The tool is equipped with a 1000 mm focal length spectrometer and features a wide mechanical range that enables high density gratings to be used at an extended wavelength for optimum resolution potential; for example, a 1200 g/mm grating can be scanned to 1500 nm with 0.008 nm resolution.

The 1000M Series spectrometers are industry-proven research-grade instruments and provide high versatility and system automation which are not available in similar focal length spectrometers. The latest Series II portfolio delivers both unprecedented resolution and reliability that are the hallmarks of the M Series spectrometers. In addition, the system has enhanced features which include a full library of interchangeable gratings, high speed USB 2.0 compatibility, complete line of PMTs, single channel detectors and accessories, and compatibility with HORIBA Scientific’s Synapse CCDs.

Key Features

Product features of the 1000M, Series II high resolution research spectrometer are:

  • High throughput
  • Excellent resolution
  • Four ports capability
  • Unparalleled repeatability
  • Highly accurate slit for high resolution repeatability
  • Can be used with most CCDs
  • Full line of arrays and single channel detectors
  • Fully automated with SpectraMax for Windows
  • Complete range of accessories
  • LabView VI available

Specifications

Specifications of the 1000M, Series II high resolution research spectrometer are provided in the table below:

Wavelength Range 0 to 1500 nm
Resolution 0.008 nm
Detector(s) CCD, Single Channel Detectors, PMT
Dynamic Range Inquire
Accuracy +/- 0.05 nm
Signal-to-Noise Ratio Inquire.
Focal Length 1 m
Pixels Inquire
