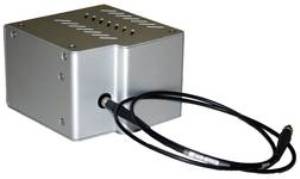

Miniature CCD Spectrometer -VS-7000 CCD-HS from HORIBA

The VS7000-CCD-HS Miniature CCD Spectrometer offered by HORIBA is a high-performance fiber optic system designed for OEM volumes. The instrument covers spectral range of UV-VIS (200–860 nm), VIS (380–750 nm), and UV-NIR (200–1050 nm). It features ultra-fast electronics (770 spectra/s), ultra-low stray light, and high throughput (f/2.8).

The VS7000-CCD-HS system is suitable for low-light applications such as emission, fluorescence, emission, reflectance, and absorbance.

Key Features

The main features of the VS7000-CCD-HS Miniature CCD Spectrometer are;

  • High readout speed
  • UV-VIS range
  • Back-illuminated linear CCD
  • Sophisticated electronics
  • High signal-to-noise ratio
  • Order-sorting filter removes second-order interference
  • High and full-speed USB 2.0
  • Robust single-optic design
  • No shutter or moving parts
  • Windows acquisition software and LabVIEW VIs and DLLs available
