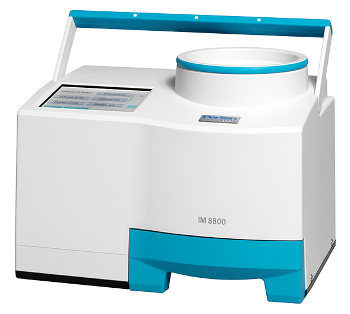

Inframatic 8800: Portable NIR Grain Analyzer

The Inframatic 8800 from PerkinElmer is the next-generation portable NIR grain analyzer for the analysis of moisture, protein and oil in oilseeds and grains. The instrument has been engineered with portability in mind to offer users the freedom to quantify grains in-field, at grain processing locations and at grain storage sites.

The analyzer is provided with GPS, thus facilitating point-specific sampling to create protein maps on the go. This helps users make informed harvesting and binning decisions. Thanks to its uncompromising quality and build standards, the instrument offers highly accurate data which users can rely on.

The Inframatic 8800 has been designed using diode array technology and solid-state components, which means there are no moving optical components. With no moving parts, it is robust, rugged,and enables users to align and match instruments at the factory. This, in turn, implies that the instruments are repeatable, accurate and reproducible.

The Inframatic 8800 has been standardized to the Inframatic 9500 — PerkinElmer’s elevator/lab instrument that is well established in the market and approved for payment instrument in various countries in the United States, Australia, Germany, etc.

Features and Benefits

  • This robust meter has been developed specifically for farm and grain elevator conditions and is best suited to test grains for oil, protein, and moisture. The tester is safeguarded from insects, light and vermin by an automated shutter, thus ensuring reliable and low-maintenance operation for several years.
  • Moisture for Falling Number test — Testing of moisture in ground wheat with the optional Moisture Module enables grain traders to use accurate moisture values while conducting Falling Number analysis. This enhances the accuracy of Falling Number results.
  • Portable — The Inframatic 8800 is compact and sufficiently lightweight to carry by hand and is powered by 12 V to 24 V, or battery (for up to 2 hours). Thus, it can be carried by users where it is needed the most: in the cab of the header or in the pickup truck. The standard carrying bag safeguards the IM 8800 and helps transport the instrument to fields, inspection sites, etc. Moreover, it is useful for long-term, safe storage of the instrument after harvest.
  • Measure in the field — The IM 8800 offers better portability and fit-for-purpose. It can be placed in the cab of the pick-up or harvester of users.
    • It is sufficiently compact to carry around the field to spot-test, thereby enabling users to identify the ideal harvest time.
    • It has been demonstrated that the variability of protein in wheat in a single row is up to 6%. The maps enable users to capture that value. Thus, they can increase profitability by gaining better control of drying, determining the highest quality grain and selling it for a premium.
  • GPS — The Inframatic 8800 can be fitted with a GPS to help create protein maps of users’ fields. Thus, they can make quick harvesting and binning decisions to manage the grain quality.

Operation and Handling

The Inframatic 8800 is highly user-friendly. An intuitive user interface helps operate the instrument through a touchscreen. Samples can be analyzed in just a few, easy steps:

  1. The type of grain to analyze should be selected.
  2. The sample should be poured into the funnel and “Start” should be pressed
  3. Once analysis is over, results are shown on the screen, and the sample box can be emptied.


Source: PerkinElmer Food Safety and Quality

. .
Products Grains and Oilseeds
Parameters Moisture, Protein, Oil, and more
Analysis time ~90 s
Sample size ~400 ml
Subsamples Up to 10 per sample
Analysis principle Diode-array detector, Transmittance
Wavelength range 850-1050 nm
Size (W x D x H) 349 x 265 x 274 mm
Weight 7 kg
Interfaces 4 x USB-A ports, 1 x Ethernet port (RJ45)
Display 5.7" color touch screen
Protection Dust and humidity protected
Battery operation ~2 hrs.
Positioning GPS module, connected through USB port
Ambient temp spec. 5-45 °C
