ZEISS Xradia 810 Ultra X-Ray Microscope

By using ZEISS Xradia 810 Ultra X-Ray microscope, users can obtain spatial resolution down to 50 nm—the highest among lab-based X-Ray imaging systems. This non-destructive 3D imaging system is vital for today’s breakthrough research and offers flexibility and unmatched performance.

The 3D imaging system adapts advanced X-Ray optics from synchrotron technology, and the novel Xradia Ultra architecture provides absorption and phase contrast.

Users can improve the efficiency of their nanoscale imaging by up to a factor of 10 with energy at 5.4 keV and can obtain improved image contrast and quality for medium to low Z samples with the lower energy of Xradia 810 Ultra.

Users can also accomplish better in situ and 4D results by studying structural evolution over time and under different conditions. They can also use it for materials research, life sciences, natural resources and various industrial applications.


Highest Resolution, Even Higher Contrast, Faster

ZEISS solutions offer the first non-destructive 3D X-Ray imaging with spatial resolution down to 50 nm in a lab instrument. The ZEISS Xradia 810 Ultra uses Zernike phase contrast and absorption and advanced optics adapted from the synchrotron technology for achieving better contrast and resolution for research. It allows breakthrough research by including a vital, non-destructive step in traditional imaging workflow.

The Xradia 810 Ultra offers high contrast for studies at 5.4 keV and enables high-resolution X-Ray imaging for difficult-to-image materials. Users can optimize their imaging with absorption and phase contrast for a variety of materials, such as oxides, fuel cells, polymers, composites, geological samples and biological materials.

ZEISS XRM, the leader in nanoscale X-Ray imaging at synchrotrons and renowned lab facilities, offers novel solutions to help users put their studies at the forefront of research.

Whether the work is for science or industry, the Xradia 810 Ultra optimizes the business case for XRM by providing faster nanoscale X-Ray imaging. For central microscopy laboratories, a quicker workflow allows more users to use the instrument in less time, thus extending XRM to a broad base of subscribers.

Users can also quickly conduct and repeat in situ and 4D studies of internal structures. These factors make these techniques suitable for various applications. If the applications are specific, for instance, digital rock physics for the study of the feasibility of oil and gas extraction, the Xradia 810 Ultra can offer data for characterizing critical parameters, such as porosity, within a few hours.


  • 3D X-Ray imaging with resolution up to 50 nm available in a laboratory
  • Zernike absorption and phase contrast to image different kinds of materials—medium to low Z, tissue to biomechanisms, carbonates to shale—quicker by a factor of 10 at the nanoscale
  • Automatic image alignment for tomographic reconstruction
  • Improved economics based on faster image acquisition times—helpful in extending the reach of the central microscopy laboratories to a wide range of researchers
  • Synchrotron-like results in the lab without the challenge of limited access to synchrotrons, or for making synchrotron time more efficient
  • Non-destructive 3D X-Ray imaging allows imaging of the same sample without break for direct observation of microstructural evolution
  • Achieving high resolution while imaging samples within in situ devices
  • Helps in developing, preparing and analyzing users’ planned synchrotron experiments in their laboratory to efficiently manage limited accessibility of synchrotron beam time
  • Switchable field of view from 16 to 65 µm, as best suited to users’ imaging needs
  • Scout-and-Scan Control System with an easy workflow-based user interface allows the instrument to be used for central imaging labs having users with varying levels of experience

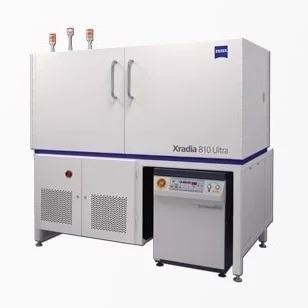

ZEISS Xradia 810 Ultra X-ray Microscope

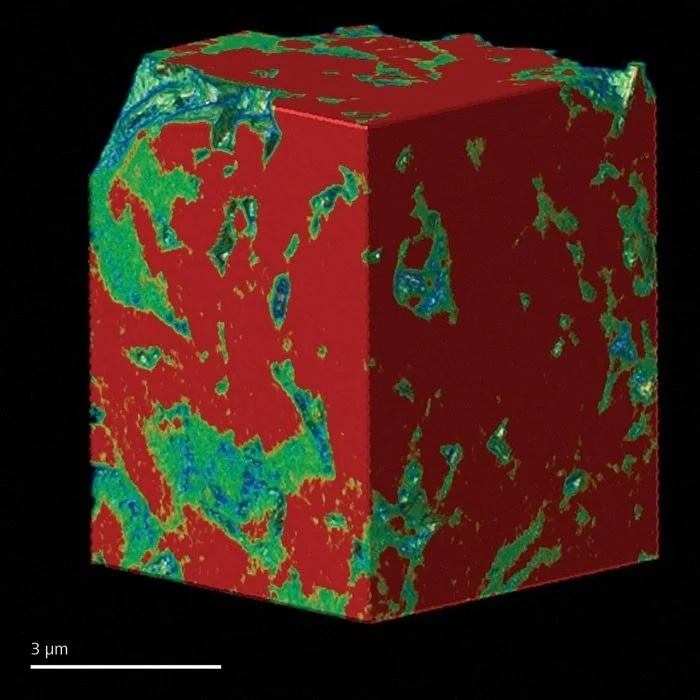

Al Cu Eutectic Alloy
Compression of Elastomer

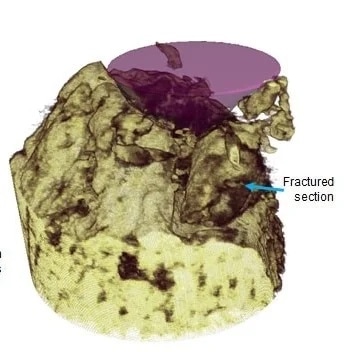

Crack Propagation and Fracture in Dentin
