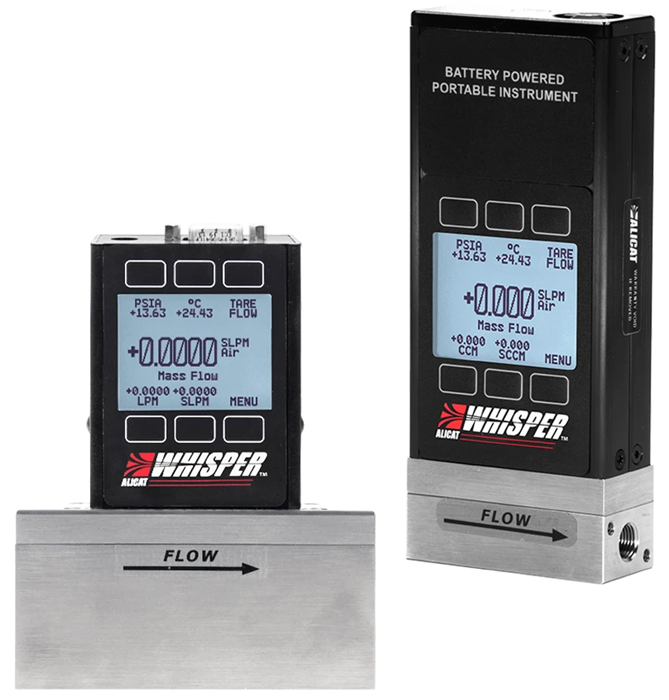

Low-pressure-drop mass flow meters are well-suited to systems with limited source pressure. Whisper instruments create almost no pressure drop, with values as low as 0.07 PSID.
- 0.01-100 % measurement range (10,000:1 turndown)
- Laminar DP (differential pressure) mass flow measurement technology that measures flow with minimal decrease in downstream pressure
- Instant accuracy, with no warm-up
- 98 standard pre-loaded gas choices: switch easily, without losing accuracy
- Limited Lifetime Warranty: Measures mass flow, volumetric flow, temperature, and pressure
Image Credit: Alicat Scientific, Inc.
- Operating Pressure Range: 11.5-60 PSIA
- Full Scale Flow Ranges: 0.5 SCCM-1,000 SLPM

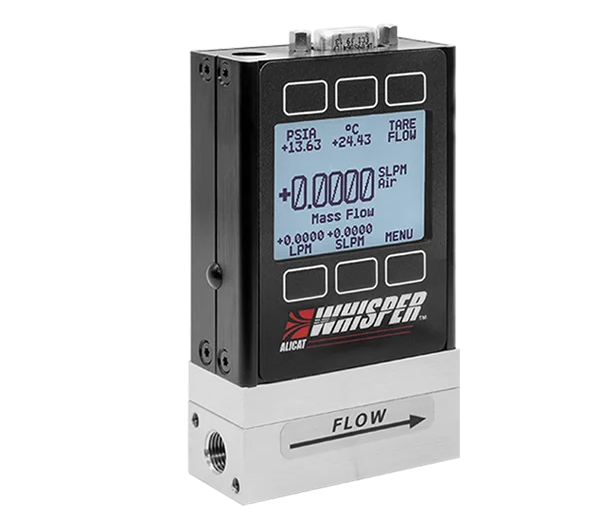

MW Series Meter
Image Credit: Alicat Scientific, Inc.
For most low-pressure flow measurements.
Most versatile
- ± 0.6 % of reading accuracy
- 60 PSIA max operating pressure
- 0.5 SCCM-1,000 SLPM options
- ± (0.1 % of reading + 0.02 % of full scale) repeatability

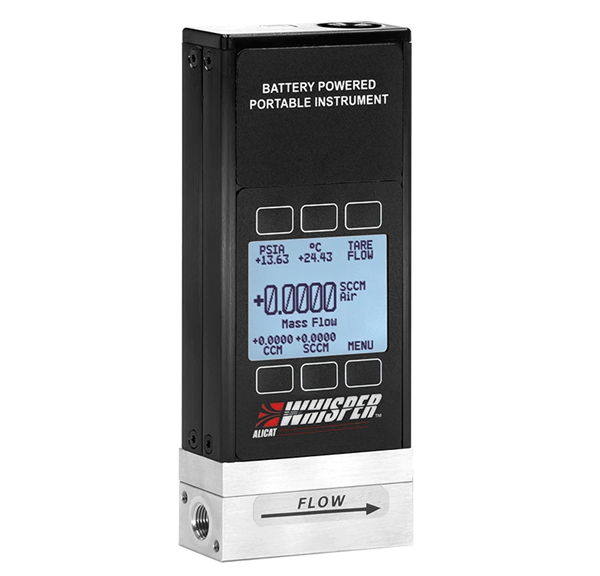

MWB Series Meter
Image Credit: Alicat Scientific, Inc.
Battery powered for portability
For metering anywhere
- Optional Bluetooth®
- Battery life up to 14 hours
- ± 0.6 % of reading accuracy
- 98 pre-loaded gas calibrations
- 60 PSIA max operating pressure
- 0.5 SCCM-1,000 SLPM options
Available Variants
M Series Meter
Laminar Differential Pressure Meters
MB Portable Mass Flow Meters
Battery-powered, so users can measure anywhere they need to.
IS-Max Intrinsically Safe Mass Flow Meters
Laminar DP meters for explosive atmospheres.
Build Options
Source: Alicat Scientific, Inc.
| . |
. |
Communication
Protocols |
RS-232 Serial (default)
RS-485 Serial
Analog (4-20 mA, 0-10 Vdc, 0-5 Vdc, or 1-5 Vdc)
Modbus RTU (over RS-232 or RS-485)
Modbus TCP/IP
DeviceNet
EtherCAT
EtherNet/IP
PROFIBUS
PROFINET
IO-Link |
| Displays |
Backlit monochrome (default) or TFT color; integrated or panel-mount; none |
| Process Connections |
10-32, NPT, SAE, BSPP, VCRM, VCO, Compression |
| Ingress Protection |
IP40 (default); IP66, IP67 |
| Hazardous Environment Ratings |
For explosive environments, see IS-Max Series Flow Meters |
| Humid Gases |
Relative humidity compensation |
