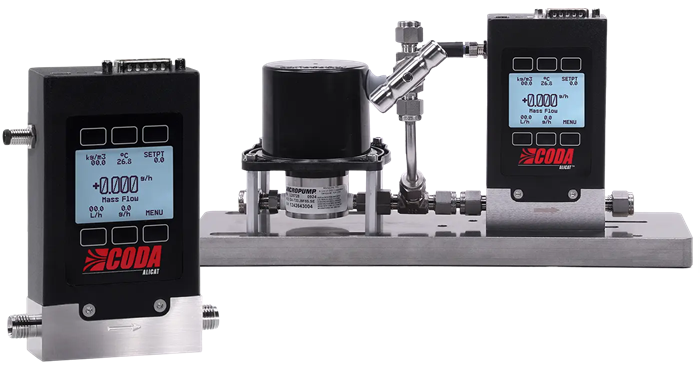

The CODA Liquid Pump System serves as a comprehensive solution for producing liquid flow and accurately regulating flow rates.
It employs a Coriolis liquid meter to adjust pump speed while simultaneously measuring mass flow. Users can read and manage mass or volumetric flow rates without being affected by the liquid's composition.
The robust, anti-corrosive characteristics of CODA make Coriolis liquid pump systems ideal for precision dispensing, liquid transfer, chemical research, microfluidics, and pharmaceutical applications.
- 0.2-200 cP viscosity
- Limited lifetime warranty
- −37 ºC to 70 ºC operating temperature
- For homogeneous fluids with or without particulates
- High accuracy: as high as ± 0.2 % of reading or ± 0.05 % of full scale, whichever is greater
Full Scale Flow Measurement Ranges
KG-Series: 1 kg/h full scale to 100 kg/h full scale
KF-Series: 40 g/h full scale to 300 kg/h full scale

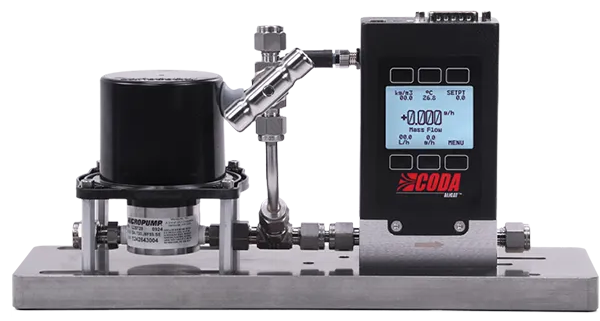

CODA KG Series Pump System
Image Credit: Alicat Scientific, Inc.
- Provide the pump
- Full scale ranges from 1 to 100 kg/h
- Customizable ranging options are available
- The control response time is less than 1500 ms
- It measures mass flow, density, and temperature
- The control range is from 2 % to 100 % of the full scale
- A bypass valve is included to assist in regulating oversupply

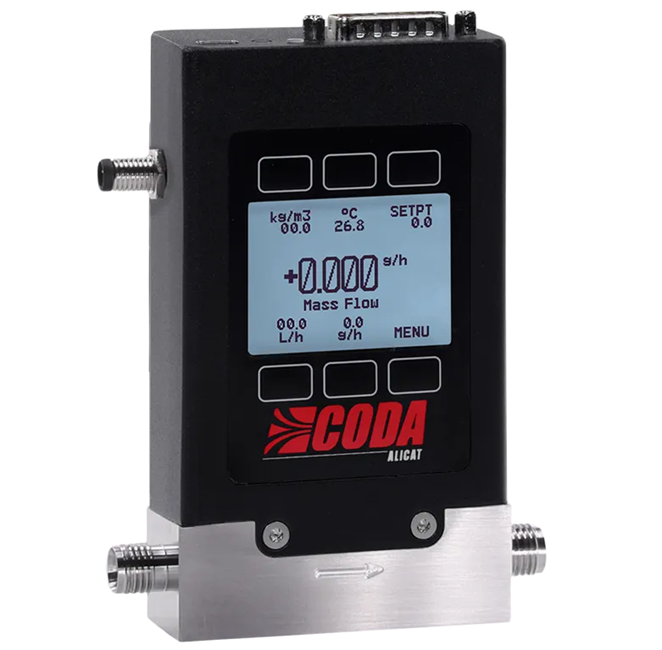

CODA KF Series Pump Controller
Image Credit: Alicat Scientific, Inc.
- 40 g/h-300 kg/h
- Provide the pump
- Customizable ranging
- 5-100 % of the full-scale control range
- It measures mass flow, density, and temperature
- Control response time of less than 200 ms, depending on the pump
Build Options
Source: Alicat Scientific, Inc.
| . |
. |
| Communication Protocols |
Modbus RTU (over RS-232 or RS-485) |
| Displays |
Backlit monochrome (default); none |
| Ingress Protection |
IP40 |
