A Coriolis mass flow controller allows users to regulate mass flow regardless of the gas composition.
- Control and measure gases of unknown or variable composition
- < 140 millisecond control response
- −35 to 70 °C operating temperature
- Measures mass flow, density, and temperature
- Compatible with corrosive or non‑corrosive gases
- Economical standard accuracy option: as good as ± 1.0 % of reading
- High accuracy option: as good as ± 0.5 % of reading
- IP67 rating option
- Limited lifetime warranty
Image Credit: Alicat Scientific, Inc.
- Full Scale Flow Ranges: 40 g/h-300 kg/h
- Proof Pressure Options: 1,500 PSIA or 4,000 PSIA

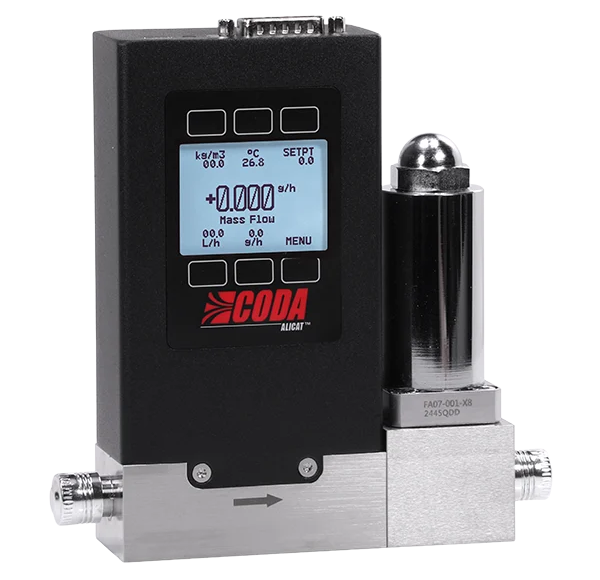

CODA KC Series Mass Flow Controller
Image Credit: Alicat Scientific, Inc.
Coriolis Technology
Control a larger range of gases than previous product lines.
- 5-100 % of full-scale control range (20:1 turndown)
- Standard accuracy: as good as ± 1 % of reading or ± 0.2 % of full scale

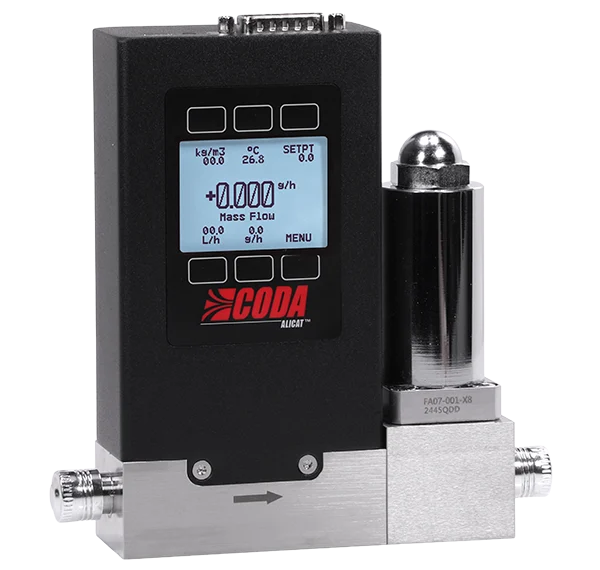

High Accuracy CODA KC Series Controller
Image Credit: Alicat Scientific, Inc.
High Accuracy Calibration
Precise measurement with the advantages of standard accuracy.
- 2-100 % of full-scale control range (50:1 turndown)
- High accuracy: as good as ± 0.5 % of reading or ± 0.05 % of full scale

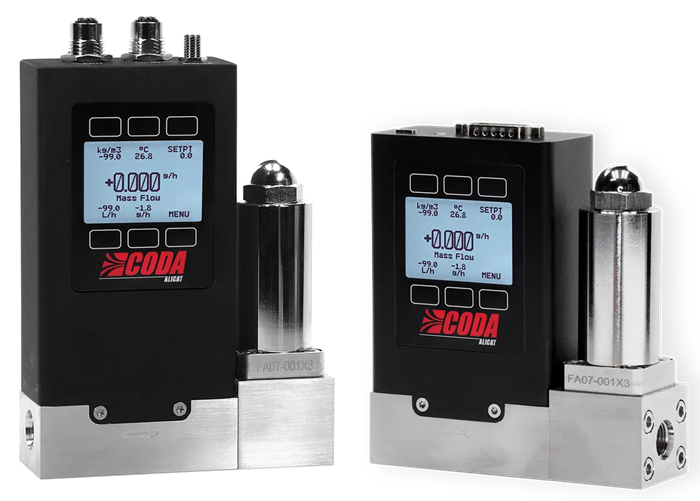

Build Options
Source: Alicat Scientific, Inc.
| . |
. |
Communication
Protocols |
RS-232 Serial (default)
RS-485 Serial
Analog (4-20 mA, 0-10 Vdc, 0-5 Vdc)
Modbus RTU (over RS-232 or RS-485)
EtherCAT
EtherNet/IP
PROFINET |
| Displays |
Backlit monochrome (default); none |
| Process Connections |
Compression, SAE, VCRM |
| Body Seals |
FKM, FFKM, EDPM, 316L SS, Nickel Alloy |
| Electrical Connector |
USB-C and DB15, 8-pin M12*, RJ45 |
| Ingress Protection |
IP40; IP67* |
*Unavailable with integrated display
