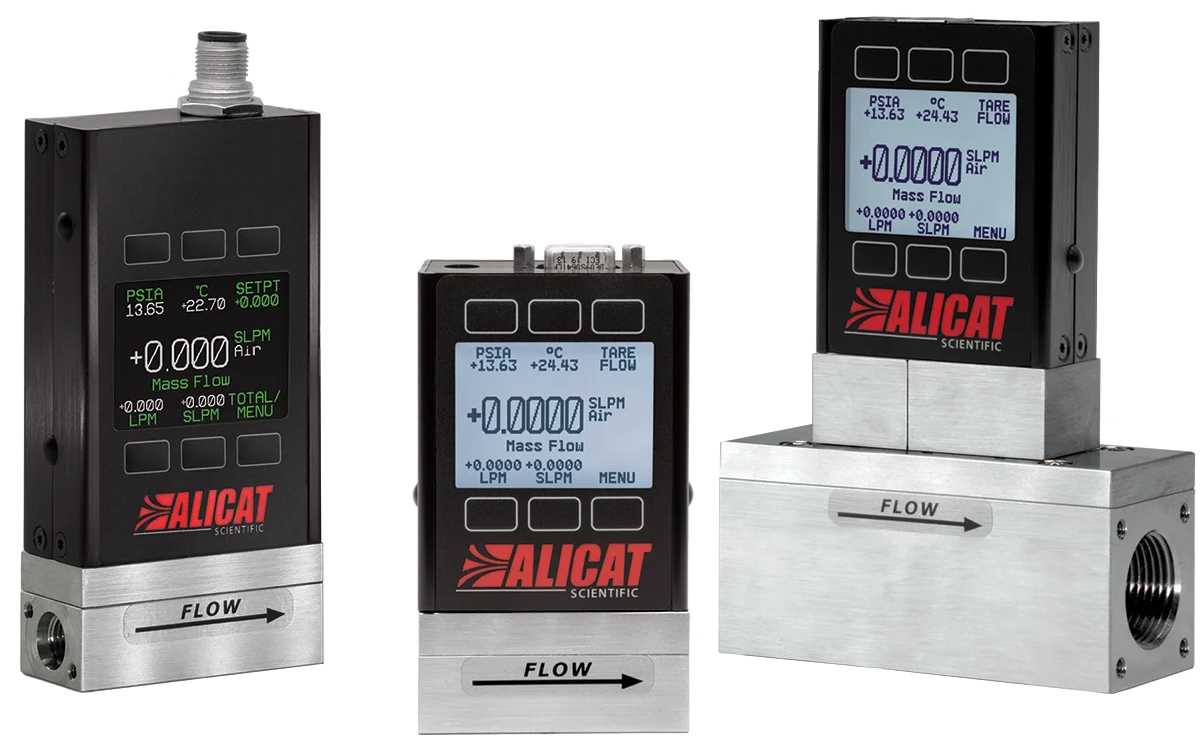

The M Series Mass Flow Meters With Laminar DP Technology

These Mass flow meters are exceptionally versatile due to the highly responsive, multivariate laminar DP (differential pressure) technology. Built to spec with a variety of options to accomodate varying pressure ranges, flow rates, wetted materials or other process requirements.

• Complete with Limited Lifetime Warranty
• Features a measurement range as wide as 0.01-100 % (10,000:1 turndown)
• This technology measures mass flow, volumetric flow, temperature, and pressure
• Laminar DP technology for for fast, high resolution mass flow measurement
• Offers 98+ standard pre-calibrated gas options that allow for switching without any loss of accuracy

Full Scale Flow Ranges

0.5 SCCM – 12,000 SLPM

Operating Pressure Range

11.5 – 320 PSIA

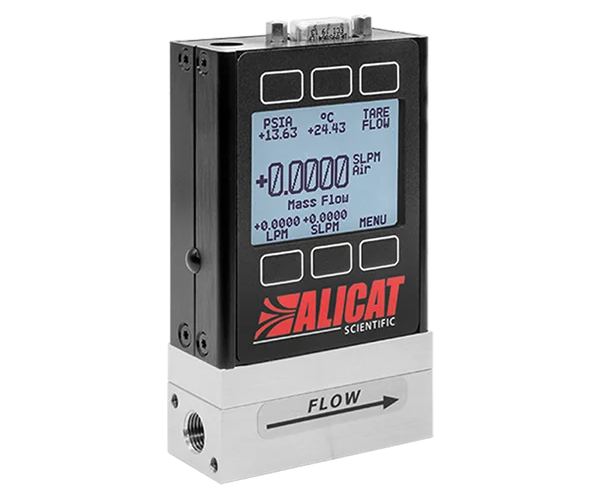

M Series Meter

For most gas measurement

Most versatile

Image Credit: Alicat Scientific, Inc.

• 11.5-160 PSIA operational range
• 0.5 SCCM-12,000 SLPM alternatives
• Accuracy can be as precise as ± 0.5 % of the measurement
• ± (0.1 % of the measurement + 0.02 % of the full scale) for repeatability

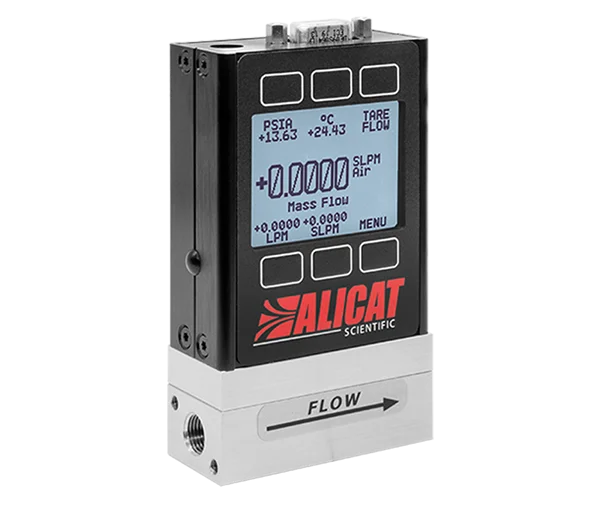

MQ Series Meter

Measure flow rates at higher pressures

Highest pressure rating

Image Credit: Alicat Scientific, Inc.

• ± 0.1 % of full-scale repeatability
• 11.5 -320 PSIA operational range
• 10 SCCM-12,000 SLPM alternatives
• Precision can be as high as ± 0.6 % of the reading or ± 0.1 % of the full scale, depending on which value is greater

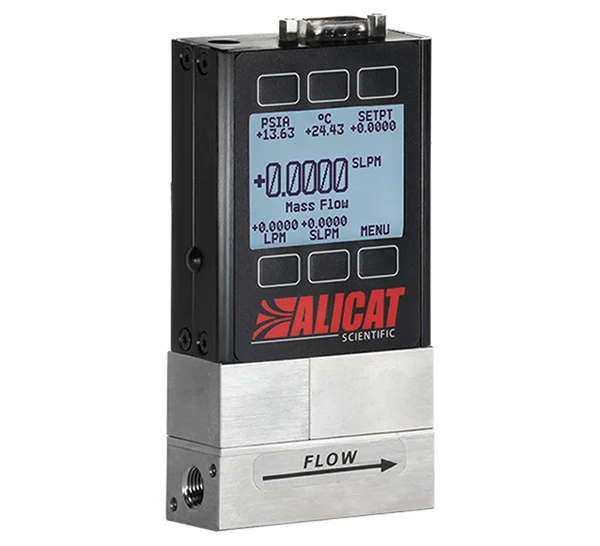

MS Series Meter

For a wider range of gases

Corrosion-Resistant Wetted materials

Image Credit: Alicat Scientific, Inc.

• 11.5 – 160 PSIA
• 0.5 SCCM – 12,000 SLPM
• 130 gases, including corrosives
• ± 0.4 % of the reading and ± 0.2 % of the full scale accuracy

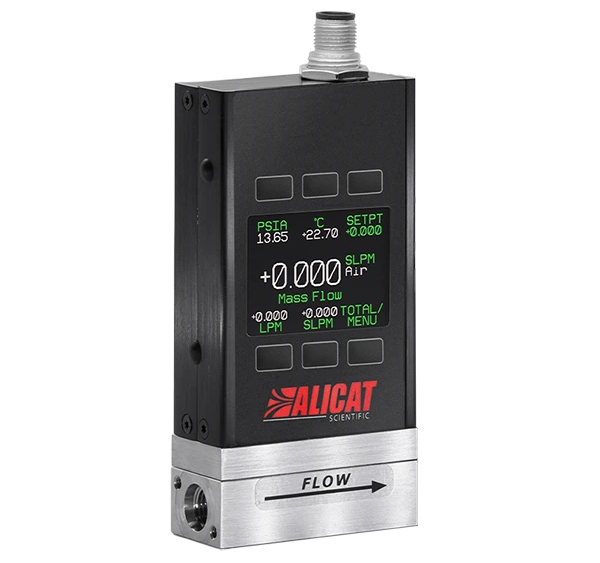

BIO Series Meter

Measure gases into and out of bioreactors + fermenters

ASME BPE compliant

Image Credit: Alicat Scientific, Inc.

• Long-term stability
• Engineered for scalability (10,000:1 operating range)
• Durable, compliant materials such as USP Class VI or USPVI elastomers
• Additionally employs laminar differential pressure mass flow meter technology

Available Variants

MW Series Meter

The MW Series Meters are low-pressure drop laminar DP mass flow meters.

Build Options for Laminar Differential Pressure Mass Flow Meters

Source: Alicat Scientific, Inc.
