Coriolis mass flow meters measure mass flow regardless of gas composition.
- Limited lifetime warranty
- Corrosive or non-corrosive gases
- 35-70 °C operating temperature
- High accuracy option: ± 0.5 % of reading
- Gases of unknown or variable composition
- Measures mass flow, density, and temperature
- Ultra economical standard accuracy option: ± 1.0 % of reading
Image Credit: Alicat Scientific, Inc.
- Full Scale Flow Ranges: 40 g/h-300 kg/h
- Proof Pressure Options: 1500 PSIA, 4000 PSIA

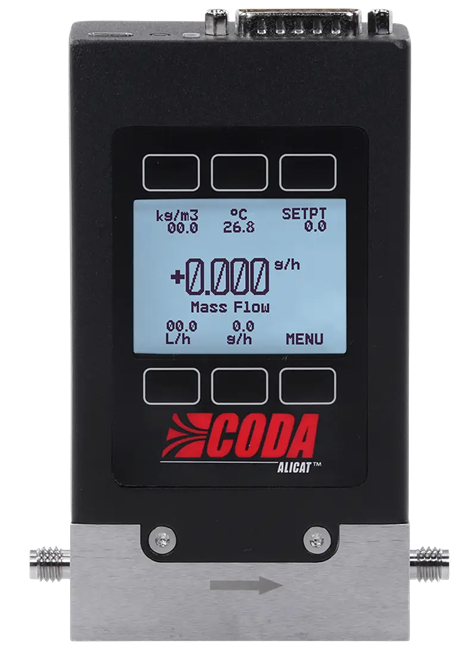

CODA Series Coriolis Mass Flow Meter
Image Credit: Alicat Scientific, Inc.
Miniaturized Coriolis technology
For accurate assessment of mass flow.
- 1-100 % of full-scale flow measurement range
- The standard accuracy is ±1 % of the reading or ±0.2 % of the full scale, whichever is larger

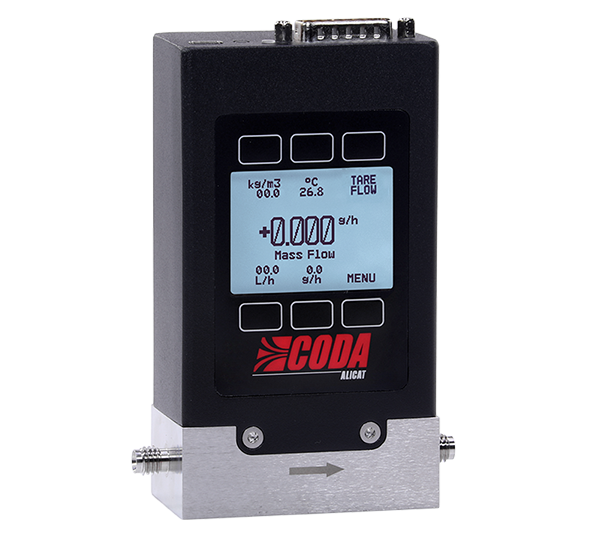

CODA Series High Accuracy Coriolis Mass Flow Meter
Image Credit: Alicat Scientific, Inc.
Tighter Calibration requirements
For the most accurate mass flow measurement.
- 0.2-100 % of full scale flow measurement range
- High accuracy ± 0.5 % of reading or ± 0.05 % of full scale, whichever is greater
Build Options
Source: Alicat Scientific, Inc.
| . |
. |
| Communication Protocols |
RS-232 Serial (default)
RS-485 Serial
Analog (4-20 mA, 0-10 Vdc, 0-5 Vdc)
Modbus RTU (over RS-232 or RS-485)
EtherCAT
EtherNet/IP
PROFINET |
| Displays |
Backlit monochrome (default); none |
| Process Connections |
Compression, SAE, VCRM |
| Body Seals |
FKM, FFKM, EDPM, 316L SS, Nickel Alloy |
| Electrical Connector |
USB-C and DB15, 8-pin M12*, RJ45 |
| Ingress Protection |
IP40; IP67* |
*Unavailable with integrated display
