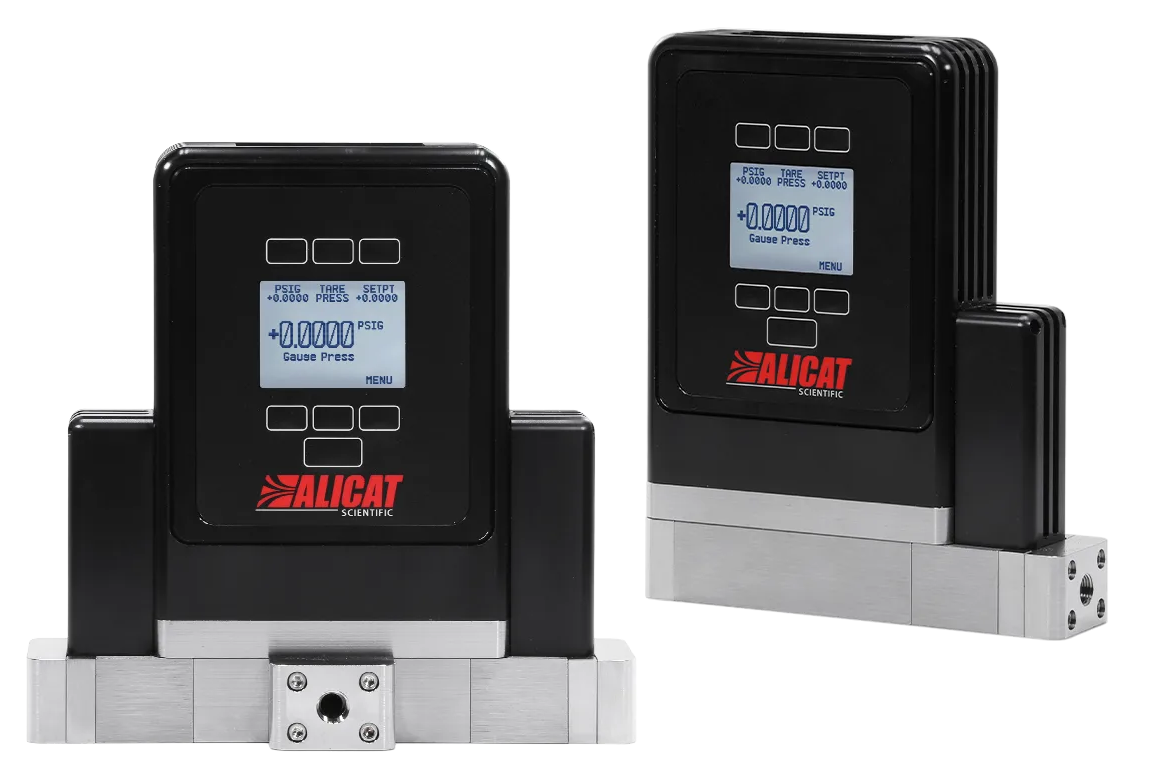

IS-Pro™ Class I Div 1 Electronic Pressure Controller

IS-Pro^™ class I division 1 EPC is designed for pressure control in hazardous environments. It is suitable for both flowing and dead-ended applications in class I division, 1 or class I zone 0 settings, providing precise and consistent measurements along with rapid proportional control. This makes it an excellent choice for pilot pressure to dome-loaded pressure regulators or backpressure control in analyzers.

The IS-Pro^™ is intrinsically safe and can be used in hazardous zones without an explosion-proof housing. It is certified for use in North America (CID1), Europe (ATEX zones 1 & 0), and has international certification (IECEx).

• Repeatability of ± 0.08 % of the full scale
• Absolute, gauge, or differential pressure
• Accuracy can reach ± 0.125 % of the full scale
• Suitable for a broad spectrum of non-corrosive and corrosive fluids
• Measurement and control range from 0.01 to 100 % (10,000:1 turndown)
• Digital (MODBUS RTU or ASCII) or analog communication options available

Full Scale Pressure Ranges: 0.07-1,500 PSI

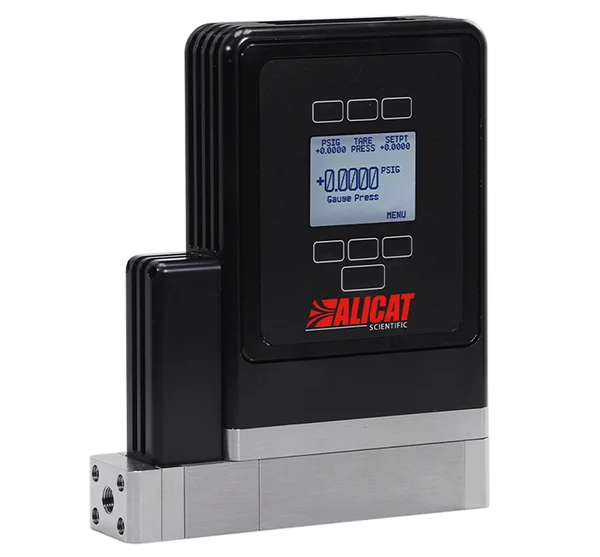

ISPC Series Controller

Intrinsically Safe Pressure Controllers

Fast Control of pressure

Image Credit: Alicat Scientific, Inc.

• 0.07-1,500 PSI
• Non-corrosive gases
• Digital or analog data transmitting
• Absolute, gauge, or differential pressure regulation
• Accuracy as precise as ± 0.125 % of the full scale
• The differential option manages pressure between two locations

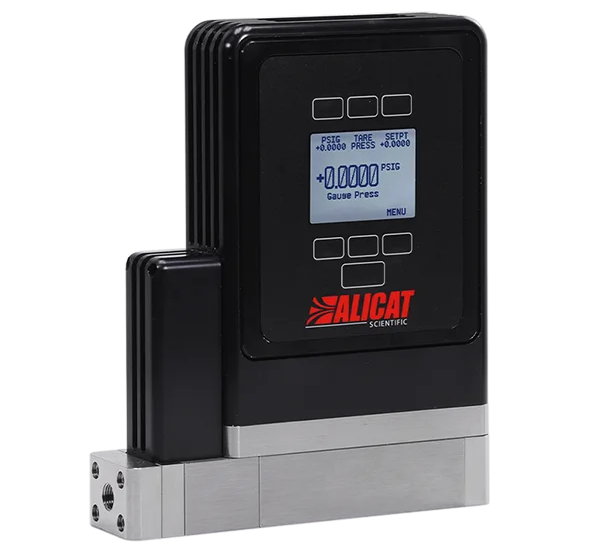

ISPCS Series Controller

Media Isolated Intrinsically Safe Pressure Controller

Corrosion-resistant Wetted Materials

Image Credit: Alicat Scientific, Inc.

• 0.07-1,500 PSI
• Up to 129 gases, including caustic types
• Digital or analog communication methods
• Absolute, gauge, or differential pressure regulation
• Accuracy can be as precise as ± 0.125 % of the full scale
• The differential option manages pressure between two locations

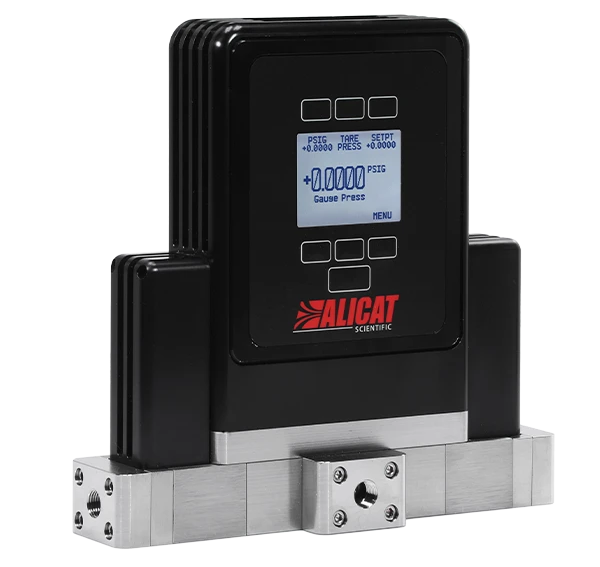

ISPCD Series Controller

Intrinsically Safe Dual‑Valve Pressure Controllers

Inlet and Exhaust Valves

Image Credit: Alicat Scientific, Inc.

• 0.07-1,500 PSI
• Non-corrosive gases
• Precise control with two valves
• Digital or analog communications
• Accuracy as good as ± 0.125 % of full scale
• Absolute, gauge, or differential pressure control

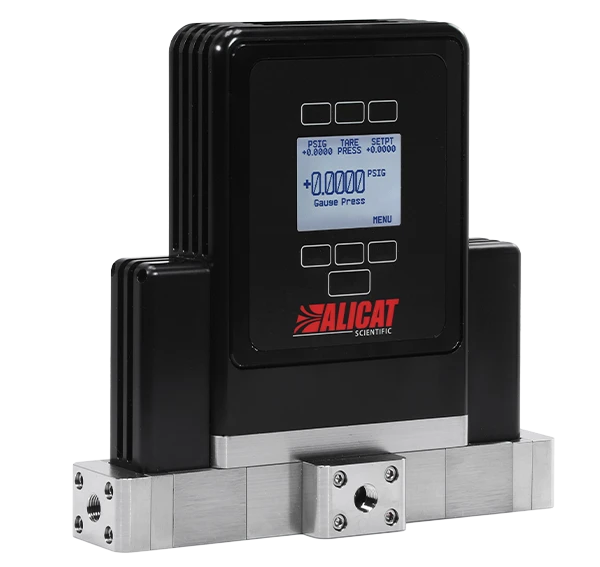

ISPCDS Series Controller

Intrinsically Safe Media Isolated Dual-Valve

Dual-valve, corrosion-resistant

Image Credit: Alicat Scientific, Inc.

• 0.07-1,500 PSI
• Digital or analog communications
• Up to 129 gases, including corrosive ones
• Accuracy as good as ± 0.125 % of full scale
• Precise control with two valves: inlet and vent
• Absolute, gauge, or differential pressure control

Build Options for Intrinsically Safe Pressure Controllers

Source: Alicat Scientific, Inc.
