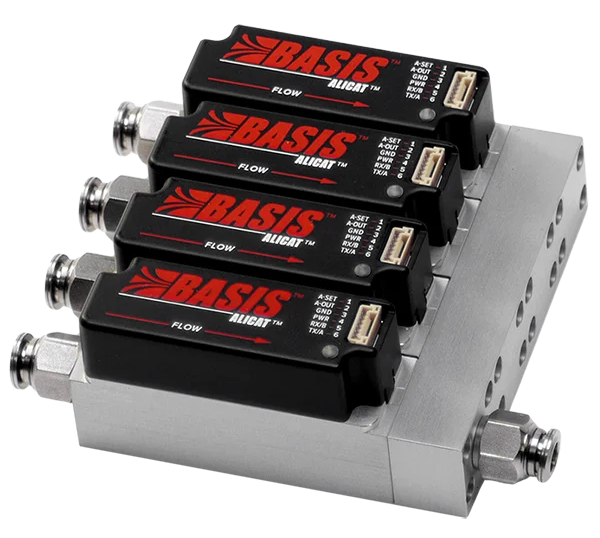

With built-to-spec compact gassing modules, this instrument optimizes gas mixing while saving space. A single manifold serves as a delivery system for multiple gases. This allows switching sources or blending gases, thereby streamlining integration within a limited area.
This gas module seamlessly mixes gases into various media, from bioreactors to furnaces used for glass melting, with straightforward commands. Improve the versatility of this gassing module with optional accessories and software.
Work alongside skilled gas flow engineers to create efficient, ready-to-use solutions tailored to the specific process. Adjust flow rates or the number of sources as needed.
Key specifications for the individual units in this manifolded solution include:
- High performance in a small package
- Custom built to meet specific process needs
- ± 1.5 % flow reading accuracy (gas‑dependent)
- ± 0.25 % flow reading repeatability
- 100 % of full-scale measurement and control range (1,000:1 turndown)
- As fast as 100 ms control response
- Easily connect to a computer or PLC
- Compatible with 9 gases: Air, N2, O2, CH4, He, H2, Ar, CO2, N2O
Full Scale Flow Ranges
100 SCCM-100 SLPM
Build Options
Source: Alicat Scientific, Inc.
| . |
. |
| Communication Protocols |
RS-232 Serial (default)
RS-485 Serial
Analog (4-20 mA or 0-5 Vdc)
Modbus RTU (over RS-232 or RS-485) |
| Displays |
None |
| Process Connections |
NPT, SAE, or BSPP |
| Ingress Protection |
IP40 |
| Available MFC Count |
2, 3, 4, or 6 (other variations may be available, contact Alicat OEM Systems Specialists) |
