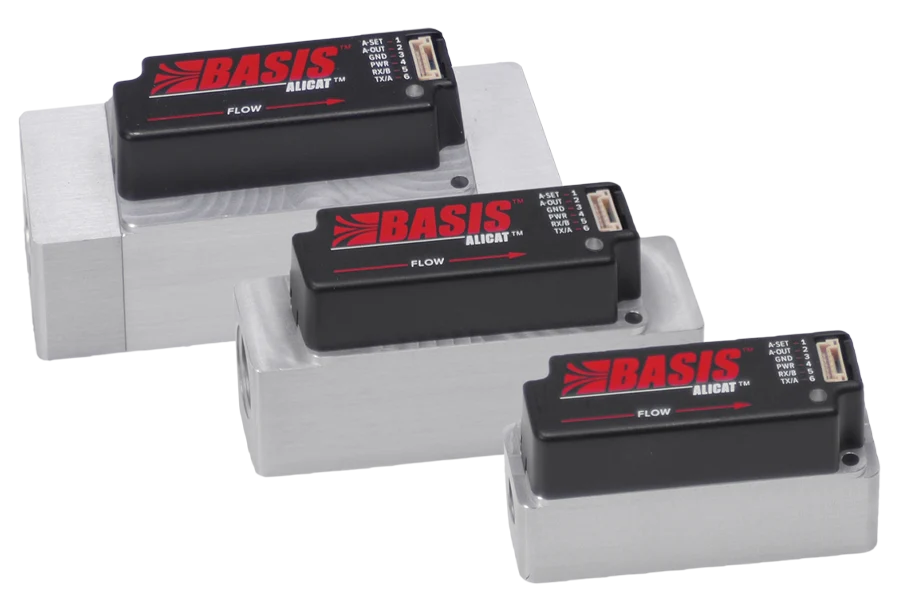

Compact mass flow meters that deliver eceptional performance, designed for processes with limited space. These devices are small enough to fit in the hand and are constructed for durability.
- ± 0.25 % reading repeatability
- ± 1.5 % reading accuracy (gas‑dependent)
- 100 % of full-scale measurement range (1,000:1 turndown)
- 1 minute warm‑up
- 0-50 °C operating temperature
- Compact, durable, metal flow body
- Switch between 9 gases: Air, N2, O2, CH4, He, H2, Ar, CO2, N2O
- Run sophisticated data-capturing scripts using a fast, robust Alicat ASCII command set
Full Scale Flow Ranges
100 SCCM-100 SLPM
Operating Pressure Range
0-145 PSIG
Build Options for Compact BASIS Mass Flow Meters
Source: Alicat Scientific, Inc.
| . |
. |
Communication
Protocols |
RS-232 Serial (default)
RS-485 Serial
Analog (4-20 mA or 0-5 Vdc)
Modbus RTU (over RS-232 or RS-485) |
| Displays |
None |
| Process Connections |
NPT or SAE |
| Ingress Protection |
IP40 |
