IS-Pro class I division 1 pressure gauges are designed for measuring pressure in processes within hazardous environments, including CID1 and class I zone 0. This intrinsically safe pressure meter can safely be installed where explosive gases are continuously present, without needing an explosion-proof housing.
It is equipped with an IP66-rated enclosure, making it suitable for installation with analyzer shelters, well sites, and shaded outdoor areas. The backlit display facilitates rapid onsite verification, while digital or serial communication options enable seamless integration into the plant's automation system.
- ± 0.125 % of full scale accuracy
- ± 0.08 % of full scale repeatability
- Absolute, gauge or differential pressure measurements
- Digital (MODBUS RTU or ASCII), or analog communications
- 0.01-100 % measurement and control range (10,000:1 turndown)
- Compatible with a wide range of non-corrosive and corrosive fluids
Full Scale Pressure Ranges: 1-3,000 PSI

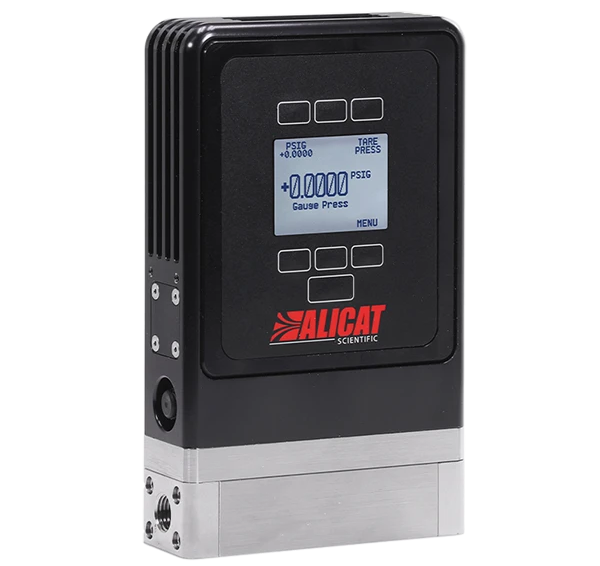

ISP Series Meter
Intrinsically safe pressure meters
Flow in explosive environments
Image Credit: Alicat Scientific, Inc.
- 1-3,000 PSI
- ± 0.125 % of full-scale accuracy
- Digital or analog communications
- Absolute, gauge, or differential pressure measurements
- Licensed for use in CID1 and Class 1 Zone 0 hazardous locations

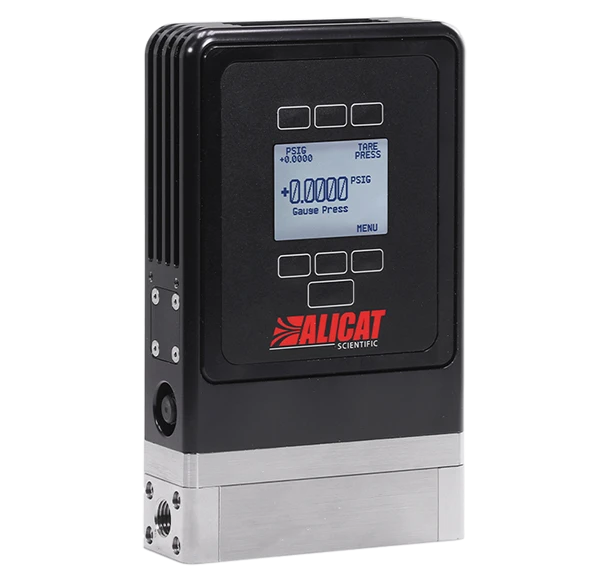

ISPS Series Meter
Media Isolated Intrinsically Safe pressure meters
Corrosion resistant
Image Credit: Alicat Scientific, Inc.
- 1-3,000 PSI
- ± 0.125 % accuracy of full scale
- Digital or analog communication options
- Absolute, gauge, or differential pressure regulation
- Licensed for application in CID1 and Class 1 Zone 0 hazardous areas
Build Options
Source: Alicat Scientific, Inc.
| . |
. |
| Communication Protocols |
RS-232 Serial (default)
RS-485 Serial
Analog (4-20 mA)
Modbus RTU (over RS-232 or RS-485) |
| Displays |
Backlit monochrome (default) or none |
| Process Connections |
NeSSI SP76 compatible; NPT, SAE, BSPP, VCRM, VCO, Compression |
| Ingress Protection |
IP66 |
| Hazardous Environment Ratings |
See certificates below
ATEX, IECEX, and North America cDEKRAus |
