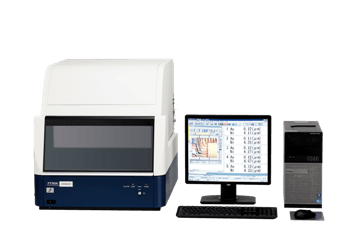

FT110A Microspot XRF Analyzers

The FT110A helps a broad range of industries ensure plating specifications are met to avoid the risks of inferior performance and the costs associated with scrap or rework. In addition, it helps increase productivity by reducing the time needed to set up a series of measurements. Accuracy and reliability are crucial in any Quality Assurance or Quality Control system, and the improved X-ray fluorescence technology inside the FT110A will support your facility in meeting the highest industry specifications.
The updated imaging system, new automatic measurement positioning functionality and a large sample table makes this benchtop coatings analyser easy to use, increasing sample throughput. The unit is controlled via an intuitive user interface on the Windows-based X-ray Station software. This helps to streamline your QA/QC setup through direct integration of data into Microsoft™ Word and Excel.


Measurement methods meet standards ISO 3497, ASTM B568 and DIN 50987.


The FT110A can analyse up to four coating layers plus the substrate. Coatings and bulk materials such as metal alloys or bath solutions can be measured using fundamental parameters (FP) or empirical calibrations.

Easy To Use

Training is simple and anyone can operate the FT110A. Just set the sample on the stage, specify the measurement area with the user-friendly interface, and start recording readings. The user interface is configurable to show only the functions needed for daily operation.

Increased Productivity

The automated features in the FT110A mean you can prepare and process samples faster, increasing your throughput.


X-ray fluorescence is a non-destructive process leaving no mark. It’s safe for sensitive materials and the used sample doesn’t need to be discarded.

Fast Analysis

The powerful, high sensitivity analytical components make it possible to measure coating thickness and composition in seconds.

FT110A | Coatings XRF Analyzer | When one micron can be the difference
