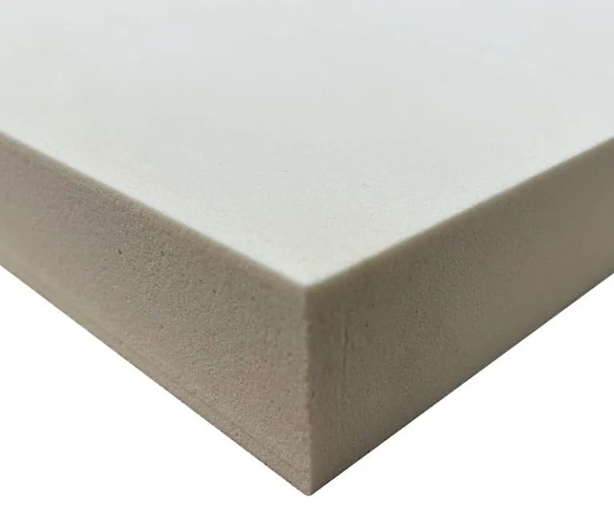

EV-UniFoam HT80 is a cross-linked polymer foam with a high strength-to-weight ratio and outstanding stability at higher processing or service temperatures. It has a closed-cell construction with negligible water absorption and contains no CFCs. The fine cell structure provides an excellent surface for bonding.
EV-UniFoam HT80 is a useful material in high-temperature structural applications.
EV-UniFoam HT80™ – 60 mm | Universal Science™
SKU: 93648
Fire Protection, Foams, Vibration Dampening, Li-ion Battery Protection
- Excellent fire performance (self-extinguishing)
- High-temperature resistance
- Excellent ratio of strength:stiffness:weight
EV-UniFoam HT80™ – 65 mm | Universal Science™
SKU: 93649
Fire Protection, Foams, Vibration Dampening, Li-ion Battery Protection
- Outstanding strength/stiffness to weight ratio
- High-temperature resistance
- Good fire performance (self-extinguishing)
Typical Physical Properties
| Property |
Test Method |
EV-UniFoam HT80 |
| Colour |
Visual |
Yellow |
| Thickness |
Visual |
3 to 70mm |
| Operating Temperature (˚C) |
- |
-180˚C to +180˚C |
Mechanical and Electrical Properties
| Property |
Test Method |
EV-UniFoam HT80 |
| Flammability |
FAR 25.853 |
Approved |
| Thermal Conductivity (W/mK) |
- |
0.036 |
| Density |
Kg/m3 |
80 |
