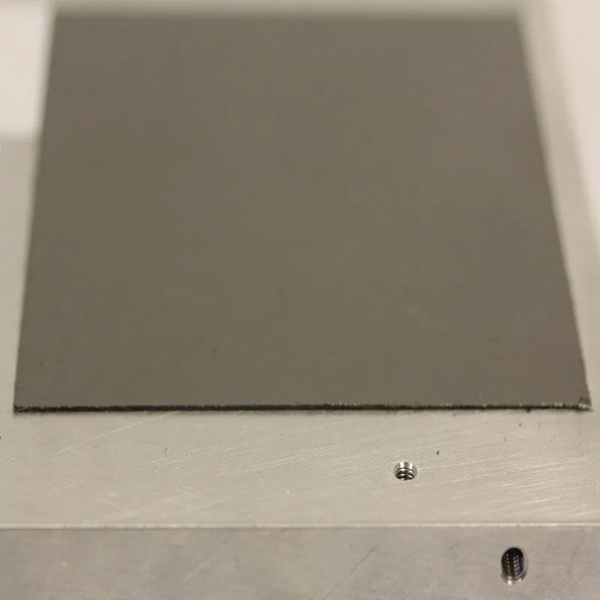

Unigraph 14000™: Graphite Thermal Interface Materials

UniGraph 14000 offers superior thermal performance and heat distribution. It is well-suited for thermal connections to heat sinks.

UniGraph 14000 is engineered with graphite for thermal bonding between metal surfaces where electrical isolation is not needed. Unlike thermal grease, UniGraph 14000 provides consistent and predictable thermal behavior. This results in a known and repeatable thermal conductivity level, which is challenging to achieve with grease.

Additionally, it can be provided with an extra adhesive coating (A1) on one side, along with a PET liner.

Benefits

• Reliable and uniform thermal performance
• Economical thermal solution suitable for a diverse range of applications that do not necessitate electrical isolation
• Simple to manage and implement
• Substitutes cumbersome grease application without the risk of pump-out or drying out

Features

• The soft surfaces on either side of the material function to minimize interfacial thermal resistance
• An outstanding, clean alternative to thermal grease
• Non-electrically isolating graphite thermal interface material

Recommended Uses

Thermally connecting metal-backed PCBs to heatsinks, cold walls, or adjacent metal structures. Attaching an LED lighting module to a heatsink is applicable in automotive, power supply, motor drive, and scenarios where cost efficiency is essential.

Technical Data

Typical Physical Properties

Source: Materials Direct

Electrical and Mechanical Information

Source: Materials Direct

Unigraph 14000^™ A0 – 0.15 mm | Universal Science^™

SKU: 94159

Graphite Interface, Thermal Grease Replacements, Thermal Interface, Thermal Paste Alternatives

• The material's pliable surfaces on either face minimize thermal resistance at the interface
• Graphite-based thermal interface material, offering no electrical conductivity
• A clean and effective substitute for thermal grease

Unigraph 14000^™ A0 – 0.5 mm | Universal Science^™

SKU: 94160

Graphite Interface, Thermal Grease Replacements, Thermal Interface, Thermal Paste Alternatives

• A superior, easy-to-use option compared to thermal grease
• A thermally conductive material made of graphite, which does not conduct electricity
• The material's surfaces are designed to be soft, which lowers thermal resistance

Unigraph 14000^™ A0 – 0.75 mm | Universal Science^™

SKU: 94161

Graphite Interface, Thermal Grease Replacements, Thermal Interface, Thermal Paste Alternatives

• A thermal grease replacement that is superior and mess-free
• Non-electrically isolating graphite thermal interface material
• Soft surfaces on both sides of the material work to minimize interfacial thermal resistance
