The T-Pad 3000 offers a highly durable solution for thermally connecting hot electronic devices to cold surfaces or nearby metalwork, while also ensuring electrical insulation. Its cold flow action and soft double-sided surfaces facilitate excellent thermal wet-out between mating surfaces, effectively eliminating micro air voids.
This process reduces thermal resistance and enhances overall thermal performance. T-Pad 3000 can be supplied in die-cut shapes, making it suitable for a wide range of electronic applications.
Benefits
- Ensures complete electrical separation
- Eliminates microscopic air gaps at the interface between the device and its mating metal, leading to improved thermal conductivity
- Provides consistent thermal regulation across a broad temperature range
Features
- Possesses electrical insulation and average thermal behavior
- Thermal conductivity = 3.0 W/mK
- Needs mounting pressure from a spring, metal clip, or clamp
Recommended Uses
- Any heat-generating surface to metal that necessitates good thermal performance and electrical insulation
- Cooling power components attached to a heatsink or chassis within PSUs
- Thermally connecting TO220 and TO247 devices to heatsinks
Technical Data
Typical Physical Properties
Source: Materials Direct
| Property (unit) |
Test Method |
T-Pad 3000 |
| Color |
Visual |
Grey |
| Thermal Conductivity (W/mK) |
ASTM D5470 |
3.0 |
| Hardness (Shore A) |
ASTM D2240 |
50 |
| Thermal Impedance (Kcm2/W @ 69 KPa) |
ASTM D5470 |
1.70 |
| Operating Temp. (°C) |
- |
-40 to +200 |
| Flame Rating |
UL94 |
V-0 |
Electrical and Mechanical Information
Source: Materials Direct
| Property (unit) |
Test Method |
T-Pad 3000 |
| Tensile Strength (N/mm) |
ASTM D412 |
26 |
| Elongation (%) |
ASTM D412 |
30 |
| Breakdown Voltage (Volts AC) |
ASTM D149 |
>4000 |
| Volume Resistivity (Ω-cm) |
ASTM D257 |
2.0 x 1013 |
Availability

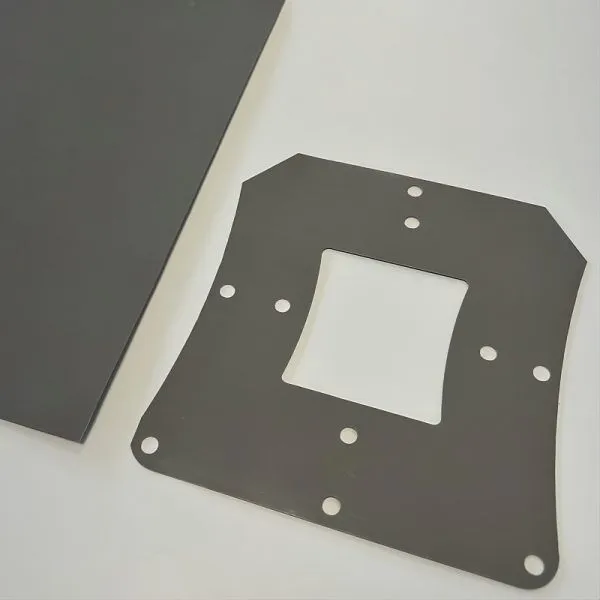

- Standard thickness of 0.23 mm
- Offered as user-defined die-cut shapes and standard sheet sizes of 300 mm x 300 mm
- Provided in roll format to the specified width, custom shape adhesive parts can also be supplied on rolls
- A weak adhesion layer may be applied to one surface
T-Pad 3000™ – A0 – 0.23 mm | Universal Science™
0.23 mm (SKU 93485), 0.5 mm (SKU 94301)
Electrical Insulators, Electrically Insulating TIM, Thermal Interface, Thermally Conductive
- Thermal conductivity: 3.0 W/mK
- Electrically insulating and moderate thermal performance properties
- Mounting requires pressure applied through a clamp, spring, or metallic clip
