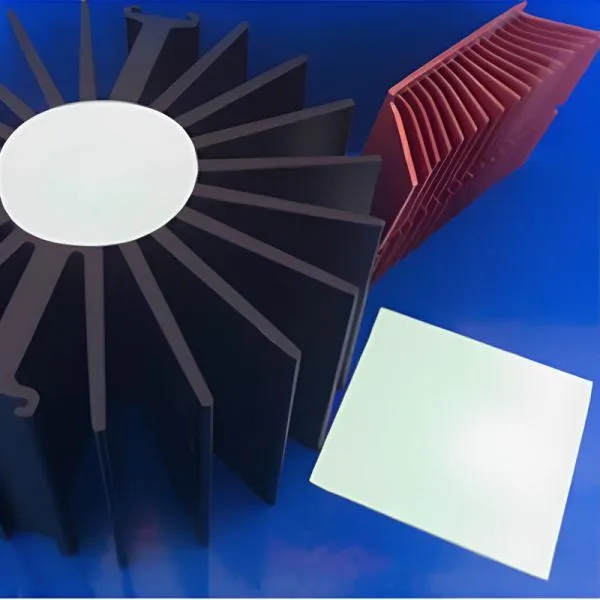

The UniGap 1100ES is characterized by its softness and ceramic filling. This composition makes it suitable for thermally coupling various components that dissipate heat.
It can handle a broad spectrum of stack-up tolerances. Importantly, it exerts minimal pressure forces on the component parts it interfaces with.
For applications requiring additional electrical isolation and improved resistance to cut-through, the UniGap 1100ES can be provided with a liner. This liner can be either fabric or film, applied to one side of the material.
Benefits
Flexible and moldable, it accommodates components of varying heights and dimensions using a single pad.
It includes a release liner on both faces, plus a fabric or film on one side for simpler manipulation.
Performance remains consistent across a broad temperature spectrum.
Features
- Offers good electrical isolation
- Highly soft and compliant silicone gap filler
- Exerts very low pressures on devices and components when in operation
- Thermal conductivity = 1.1 W/mK
Recommended Uses
- Cooling power devices in AC-DC and DC-DC PSUs
- Generally used in any gap filler application where multiple component height and size differences exist
- Cooling digital signal processing (DSP) units
- Memory cards and VGA modules
Technical Data
Typical Physical Properties
Source: Materials Direct
| Property (unit) |
Test Method |
UniGap 1100ES |
| Color |
Visual |
Pale Green |
| Thickness (mm) |
In House |
0.5 - 5.0 |
| Thermal Conductivity (W/mK) |
ASTM D5470 |
1.1 |
| Hardness (Shore 00) |
ASTM D2240 |
27 |
| Thermal Impedance (°C in.²/W) @ 50 % |
ASTM D5470 |
1.75 |
| Operating Temp. (°C) |
- |
-55 to +200 |
| Flame Rating |
UL94 |
V-0 |
Electrical and Mechanical Information
Source: Materials Direct
| Property (unit) |
Test Method |
UniGap 1100ES |
| Dielectric Strength (KV/mm) |
ASTM D149 |
> 9.5 |
| Deflection Force (kPa) @ 50 % 2.5 mm thick |
- |
100 |
| Volume Resistivity (Ω-cm) |
ASTM D257 |
2.0 x 1010 |
UniGap 1100ES™ – 0.5 mm | Universal Science™
Available in a range of thicknesses: 0.5 mm (SKU: 93847), 1.0 mm (SKU: 93848), 1.5 mm (SKU: 93849), 2 (SKU: 93850), 2.5 mm (SKU: 93851), 3 (SKU: 93852), 3.5 (SKU: 93853), 4 (SKU: 93854), 4.5 (SKU: 93855), and 5 mm (SKU: 93856).
Electrically Insulating TIM, Thermal Gap Pad, Thermal Interface
- Highly flexible silicone for gap filling
- Thermal conductivity = 1.1 W/mK
- Provides effective electrical insulation
