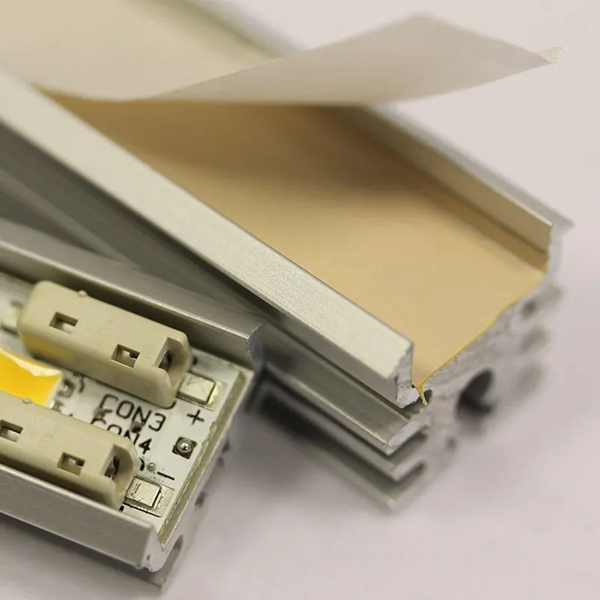

Bondline 310 is a thermally conductive, double-sided adhesive tape made from a thin polymer that is coated with thermal adhesive on both sides.
It is specifically designed to bond two surfaces that necessitate a robust, permanent connection, exceptional thermal conductivity, and reliable electrical insulation up to 65,000 volts.
Bondline 310 provides a high-performance thermal solution for affixing heat-generating electronic components to a heatsink, cold wall, or chassis.
Benefits
- Eliminating micro air voids present between mating surfaces decreases thermal resistance
- A remarkably thin bond line measuring 0.12 mm enhances thermal performance
- Exhibits high dielectric strength suitable for rigorous electronic applications
Features
- This is a double-sided thermal adhesive tape made from KAPTON polyimide film and silicone rubber
- It provides outstanding electrical insulation while ensuring effective thermal connectivity
- The pressure-sensitive application enhances the bond strength to its maximum after a period of 24 hours
Recommended Uses
Attaching PCBs and FR4 materials to a heatsink. This is essential for cooling components in power supplies or power converters. It is applicable in high-voltage breakdown scenarios.
Technical Data
Typical Physical Properties
Source: Materials Direct
| Property (unit) |
Test Method |
Bondline 300 |
| Color |
Visual |
Light Brown |
| Thermal Conductivity (W/mK) |
ASTM D5470 |
0.40 |
| Thickness (mm) |
Visual |
0.12 |
| Thermal Resistance @ 10 PSI (°C in2/W) |
ASTM D150 |
0.10 |
| Operating Temp (°C) |
In House |
-20 to +150 |
Electrical and Mechanical Information
Source: Materials Direct
| Property (unit) |
Test Method |
Bondline 300 |
| Flammability |
UL 94 |
HB |
| Adhesion to Steel (N/cm) |
ASTM 412 |
3.25 |
| Breakdown Voltage (VAC) |
ASTM D149 |
>6000 |
| Shelf Life (months) |
Visual |
6 |
Availability
- Offered in a standard thickness of 0.12 mm
- Supplied in 30 m rolls with various widths
- Available as kiss-cut on rolls and in custom die-cut shapes
