Provides an Inexpensive Solution for Digitally Recording Extensometer Output

The DSCUSB functions as a signal conditioner with a digital USB output, offering a plug-and-play interface between strain-gaged extensometers and a computer via USB. This enables direct data capture without requiring additional data acquisition electronics or an input channel in the testing machine's controller. When purchased from Epsilon with an extensometer, the pair are calibrated and strain readings transmitted via USB are calibrated values.

Calibration of an extensometer is managed within the DSCUSB, accommodating up to 7 linearization points and providing output readings in mV/V, mm, or inches. The user-friendly software logs data to the computer and features digital readouts and a trend chart.

The DSCUSB can be interfaced with existing software solutions by controlling it through a set of ASCII commands via its virtual COM port.

A USB cable is included.

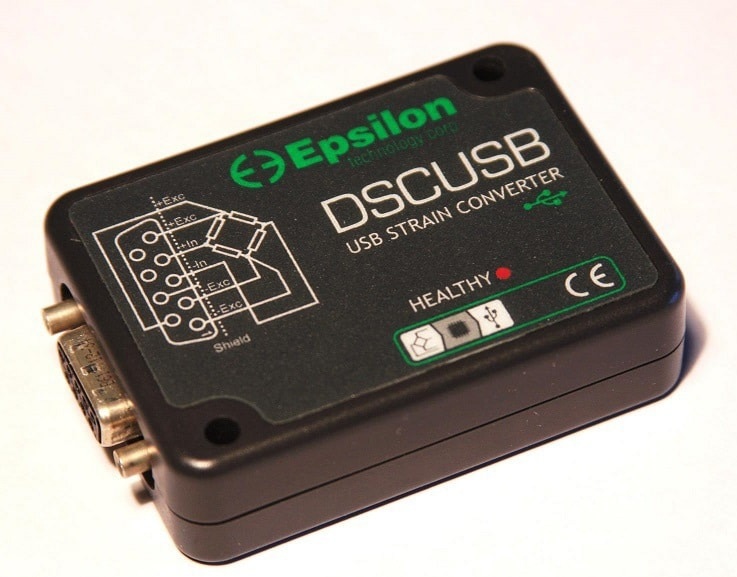

Model DSCUSB digital USB extensometer interface.

Model DSCUSB digital USB extensometer interface. Image Credit: Epsilon Technology Corporation

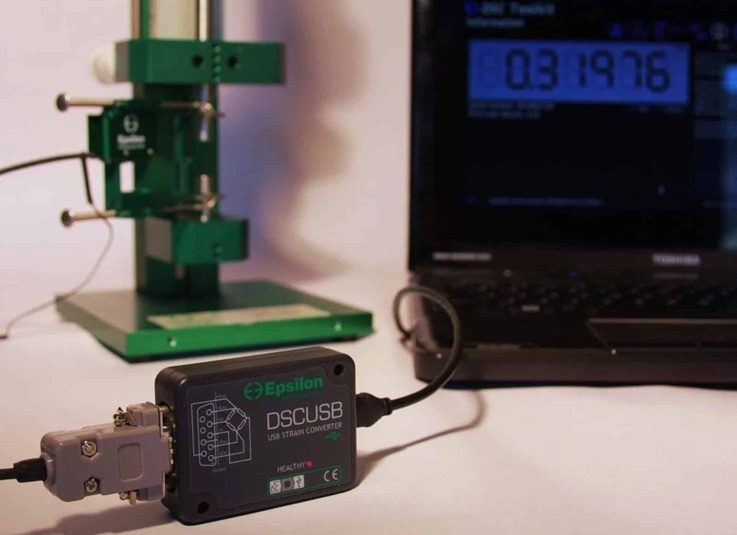

Model DSCUSB with included software for data display and capture.

Model DSCUSB with included software for data display and capture. Image Credit: Epsilon Technology Corporation

Specifications

  • Power supply: USB powered (5 V)
  • Temperature stability: <5 ppm/°C
  • Excitation voltage: 5 V
  • A/D resolution: 16 million counts (24 bits)
  • Effective resolution: 200,000 counts @ 1 Hz; 120,000 counts @ 10 Hz; 50,000 counts @ 100 Hz
  • Selectable low-pass filter
  • Data rate: 1-200 samples/second, nine settings
  • Capture software included
  • ASCII command set available for custom software development
  • Multiple DSCUSBs may be used simultaneously for multiple-channel measurements
