In high-stakes environments where time is of the essence, possessing accurate intelligence can be crucial for ensuring safety and preventing catastrophic outcomes. Icon-X represents Rigaku's latest advancement in 1064 nm Raman analyzers, marking its fourth generation. Notably, it is the first to offer standoff chemical analysis, enabling the scanning of potentially hazardous materials from a secure distance.
This capability is particularly vital for military personnel, first responders, EOD units, and border protection teams, who may encounter explosive threats like improvised explosive devices (IEDs), homemade explosives (HMEs), and chemical threats. The new feature minimizes the necessity for lengthy sample collection procedures, allowing responders to evaluate hazards without disturbing the environment.
Users now possess the distinct advantage of scanning samples remotely or through direct contact, thereby enhancing adaptability in demanding scenarios.

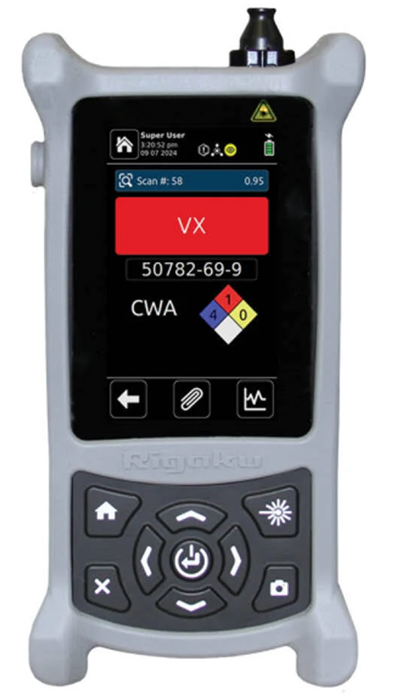

Icon-X Overview
The Rigaku Icon-X, showcasing a design that prioritizes user comfort, becomes a part of the acclaimed 1064 nm Raman CQL platform, enhancing various aspects of its functionality. This addition to the 1064 nm fleet brings several advancements:
- Accelerated scan processing leads to enhanced performance.
- An illuminated keypad coupled with a larger, more sensitive touchscreen for simpler operation.
- Integrated GPS functionality enables the tagging of essential scan information for efficient fleet oversight and the handling of delicate site operations.
- An upgraded 13 MP camera, equipped with an LED flash, captures sharper images.
- Durability is increased with MIL 810 H and IP-68 environmental ratings, making it suitable for challenging conditions and decontamination procedures.
- A range of new accessories broadens the scope of applications, introducing short-range standoff features for remote scanning and a ballprobe to improve sample accessibility.
4th Generation of Rigaku's 1064 nm Raman Advantage
Rigaku is well-regarded for its implementation of a 1064 nm Raman laser excitation, a technique employed to minimize fluorescence interference. This phenomenon frequently poses a challenge when analyzing pigmented or contaminated materials using earlier Raman instruments. Similar to prior Rigaku systems, Icon-X operators can expect to obtain a reading from each analysis, leveraging cutting-edge technology for extended operational life.
Unparalleled Support
The Icon-X signifies the newest advancement in chemical threat assessment and is backed by Rigaku's worldwide distribution network, which provides:
- Extensive training options
- Access to 24/7 Reachback assistance
- Updated spectral databases
- Software enhancements
- A 36-month warranty from the manufacturer, with choices for further options
Features
Icon-X Features
How Can the Icon-X Provide Advanced Chemical Threat Analysis in the Hot Zone?
- Ergonomic design for better handling
- Higher operational temperature range
- Enhanced mixture performance
- Quicker scan processing
- Latest LCD technology for improved responsiveness in harsh conditions
- Optional GPS for data tagging
- Integrated 13 MP camera
- Capacitive 5” touchscreen LCD
- No calibration needed
- On-board library with > 13,000 materials
Specifications
Icon-X Specifications
Source: Rigaku Corporation
| |
|
| Size |
220 mm x 108 mm x 42 mm (8.7 in x 4.25 in x 1.65 in) without boot |
| Weight |
1.7 kg (3.7 lbs) |
| Laser Wavelength/Max Power |
1064 nm / < 490 mW |
| Spectral Resolution |
~6-13 cm-1 |
| Spectral Range |
200-2450 cm-1 |
| Spectrometer Type |
Transmissive Volume Phase Grating |
| Detector |
TE Cooled InGaAs - 512 pixel |
| Operating Temperature |
-20 to 50 °C |
| Battery Type |
7.2 V Li-ion, 3350 mAh, >4 hrs operation (hot-swappable) |
Adjustable Laser Power
(Auto Mode) |
10, 20, 30, 40, 50, 60, 70, 80, 90, 100 % |
| Auto Collection Mode |
Included |
Adjustable Laser Power
(Manual Mode) |
5-100 % |
Adjustable Exposure Time
(ManualMode) |
200-7000 ms |
| Scan Modes |
Identification, ThreatAlert, ChemGuard |
| Spectral Library Size |
13,250+ items |
| Included Libraries |
Biomolecule (including Amino Acids), Cutting Agent, CWA, CWA Precursor,Explosive, Explosives Precursor, General Chemical, General Precursor, Household Chemical, Industrial Chemical 1-4 , Narcotic, Narcotic Precursor, Pesticide, Pharmaceutical, Polymer, Solvent, Steroid, TIC/TIM |
| Laser Features |
Laser arm code, Laser arm / disarm keypad button, Scan delay, and Scan timeout |
| Environmental Ruggedness |
IP-68 & MIL810H |
Connectivity to Desktop or
MobileDevice via WebUI |
Waterproof USB-Type C / Wi-Fi / Peer-to-Peer |
| Display |
Capacitive 5” touchscreen LCD |
| Input Method |
Touchscreen or button operational via illuminated keypad |
| 4C Precursor Monitoring |
Included |
| Data Output Formats |
.spc, .rrb, .pdf, .txt |
| CommandSuite Fleet Management |
Available |
| GPS |
Optional |
| Manufacturer Warranty |
36 months |
