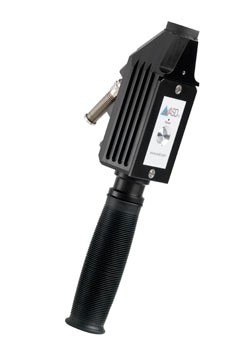

The ASD Contact Probe is developed for contact measurements of solid raw materials such as grains, minerals, other granular materials. Its novel optical design decreases measurement errors connected with stray light and allows measurement of samples through clear and transparent plastic bags.

Besides the regular contact probe, ASD also offer the Plant Probe and the Hi-Brite contact probe.

All contact probes are available with a ruggedized cable feed and cable, engineered for applications that involve extreme cold or harsh temperatures.


. .
Length 10" (25.4 cm)
Weight 1.5 lbs (0.7 kg)
Power requirements 12-18 VDC, 6.5 W
Lightsource type/Life (approx.) Halogen bulb/1500 hours
Halogen bulb color temperature 2901 +/- 10º% K
Spot size 10 mm


ASD Contact Probe
