The Smartest Way to Measure Particle Size
The Mastersizer 3000+ Ultra is the most sophisticated device for measuring particle size and size distribution using laser diffraction. This model has the broadest measurement range (0.01 - 3500 um) and facilitates automation. The digitally upgraded Mastersizer Xplorer has a full suite of artificial intelligence-powered workflow capabilities, including the new Size Sure measurement mode.

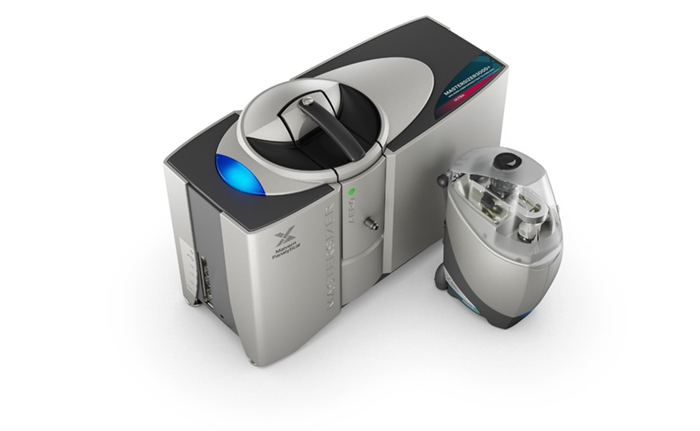

Image Credit: Malvern Panalytical

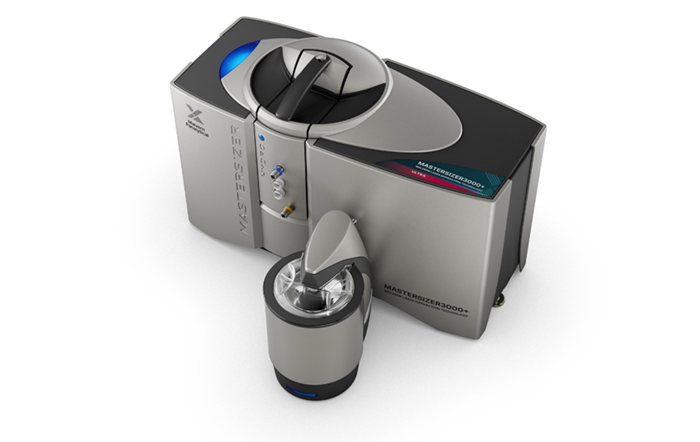

Image Credit: Malvern Panalytical
Features
- Provides high-quality particle size data while optimizing laboratory space, even for complex applications
- The program is user-friendly and includes automated measurement setup, method creation, and live data monitoring tools. Includes new Data Quality Guidance and SOP Architect functionality
- Adaptability to satisfy sample needs with a selection of replaceable automated add-ons designed for measuring suspensions, emulsions, and powders
- Users might find novel insights from the data using AI-powered solutions they cannot obtain anywhere else. Includes Size Sure mode, which makes use of Adaptive Diffraction, a patent-pending technology from Malvern Panalytical
- The most integrated experience in particle size, with OmniTrust controlling instrument auditing and access and Smart Manager providing real-time health monitoring to minimize downtime.
Mastersizer 3000+: Class leading performance with added intelligence
Specification
Source: Haydale Limited
| General |
| Particle size |
Suspensions, emulsions, dry powders |
| Principle |
Laser light scattering |
| Analysis |
Mie and Fraunhofer scattering |
| Data acquisition rate |
10 kHz |
| Typical measurement time |
<10 sec |
| Dimensions (W, D, H) |
690 mm x 300 mm x 450 mm |
| Weight |
30 kg |
| Optics |
| Red light source |
Max. 4 mW He-Ne, 632.8 nm |
| Blue light source |
Max. 10 mW LED, 470 nm |
| Lens arrangement |
Reverse Fourier (convergent beam) |
| Effective focal length |
300 mm |
| Detector |
| Arrangement |
Log-spaced array |
| Angular range |
0.015 - 144 degrees |
| Alignment |
Automatic |
| Size |
| Particle size |
0.01 - 3500 µm * |
| Number of size classes |
100 (user adjustable) |
| Accuracy |
Better than 0.6% ** |
| Precision / Repeatability |
Better than 0.5% variation * |
| Reproducibility |
Better than 1% variation * |
| Software |
| 21 CFR Part 11 |
Enables an operating mode that assists with ER/ES compliance |
| System compliance |
| Laser safety |
Class 1, IEC60825-1:2007 and CFR Chapter I: Sub-chapterJ: Part 1040 (CDRH) |
| Regulatory testing |
RoHS and WEEE compliant CE / FCC compliant Meets requirements of the European Low Voltage directive |
| System |
| Power |
100/240 V, 50/60 Hz 50 W (no dispersion units connected) 200 W maximum (2 dispersion units connected) |
| Humidity |
80% maximum for temperatures up to 31 °C, decreasing linearly to 50% at 40 °C. Non condensing. |
| Operating temperature (°C) |
+5 °C to +40 °C |
| Product storage temperature |
-20 °C to +50 °C |
| Ingress Protection (IP) rating |
IP41B |
| Patents |
| Patents |
The Mastersizer optical bench is protected by patents based on applications WO2013038161, WO2013038160 and WO2013038159. |
* Sample and sample preparation dependent
** Accuracy defined for the measurement of monomodal latex standards. This specification accounts for the manufacturer’s uncertainty in the latex size. Sample and sample preparation dependent.
