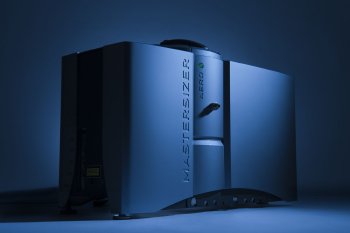

Particle Size Analyzer - Mastersizer 3000

The Mastersizer 3000+ is a dependable companion for particle size analysis. It regularly provides comprehensive data and digital and AI-based solutions to help users make key decisions in R&D and production. The Mastersizer 3000+, designed based on Malvern Panalytical’s years of expertise, employs laser diffraction to assess particle size and size distribution in materials.

Users can trust their results because of its best-in-class precision and large size range. They have the resources necessary to investigate unexpected outcomes. The Mastersizer 3000+ is unquestionably the best option for particle sizing and beyond, courtesy of its adaptability, simplicity of use, and extra accessories for dynamic imaging.

Mastersizer 3000+: Class leading performance with added intelligence

Video Credit: Malvern Panalytical Ltd

More Connected Than Ever

Send telemetry data via Smart Manager to the Malvern Panalytical local service team for real-time health monitoring, and use OmniTrust for access control and audits.

Mastersizer Models

When providing quick and precise particle size distributions, the Mastersizer line of laser diffraction particle size analyzers is the benchmark. To fit the needs and budget, we have bundled three systems. Receive the same excellent performance in each instance.

Mastersizer 3000+ Ultra

This is the most sophisticated Masterizer system to date. It combines world-class sizing performance with highly intuitive software and new data assessment features.

Features Include

  • Particle size range from 0.01 to 3500 µm
  • Automated dispersion
  • Intelligent data quality assessments
  • Advanced method development
  • Machine learning data evaluation tools

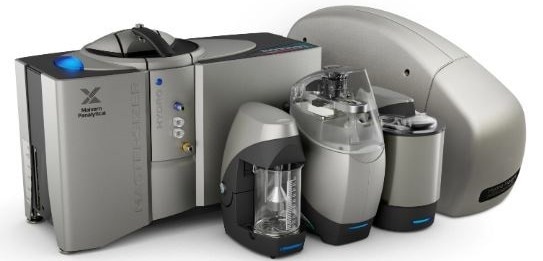

Particle Size Analyzer - Mastersizer 3000

Image Credit: Malvern Panalytical Ltd

Mastersizer 3000+ Pro

For micron sizing, the preferred entry-level system is the Mastersizer 3000+ Pro.

Features Include

  • Advanced method development
  • Intelligent data quality assessment
  • Particle size ranges from 0.1 to 1000 µm
  • Automated dispersion

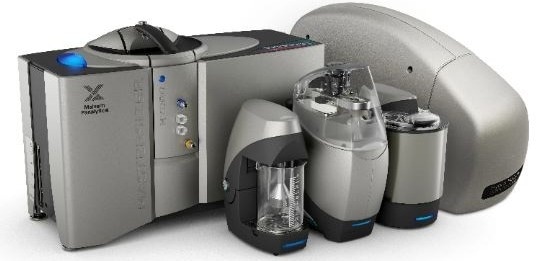

Particle Size Analyzer - Mastersizer 3000

Image Credit: Malvern Panalytical Ltd

Mastersizer 3000+ Lab

An affordable entry-level particle sizing device that can be modified as needed is offered by the Mastersizer 3000+ Lab.

Features Include

  • Particle size range from 0.1 to 1000 µm
  • Manual dispersion units only
  • Basic software
  • Anytime upgrade option

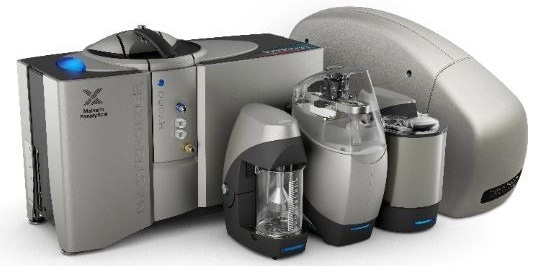

Particle Size Analyzer - Mastersizer 3000

Image Credit: Malvern Panalytical Ltd

Source: Malvern Panalytical Ltd

  Mastersizer 3000+ Ultra
Class-leading particle size performance meets innovative software solutions.
Mastersizer 3000+ Pro
Robust size performance with advanced software
Mastersizer 3000+ Lab
Entry level particle size analyzer
Laser Diffraction
Particle size range 0.01 µm - 3500 µm 0.1 µm - 1000 µm 0.1 µm - 1000 µm
Dispersion type
Automated wet X
Automated dry powder X X
Manual wet
Manual dry powder X
Basic software
Comparison software X
Advanced method development,
including SOP Architect
Data Quality Guidance X
Advanced reporting X
Size Sure mode X X
Smart Manager enabled
Installation IQ/OQ validation - -
Regulated environment 21 CFR Part 11 Support - -
