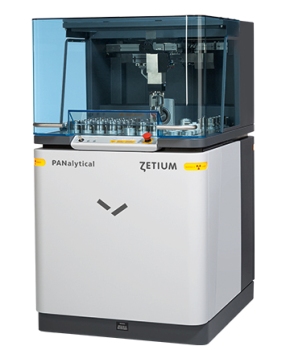

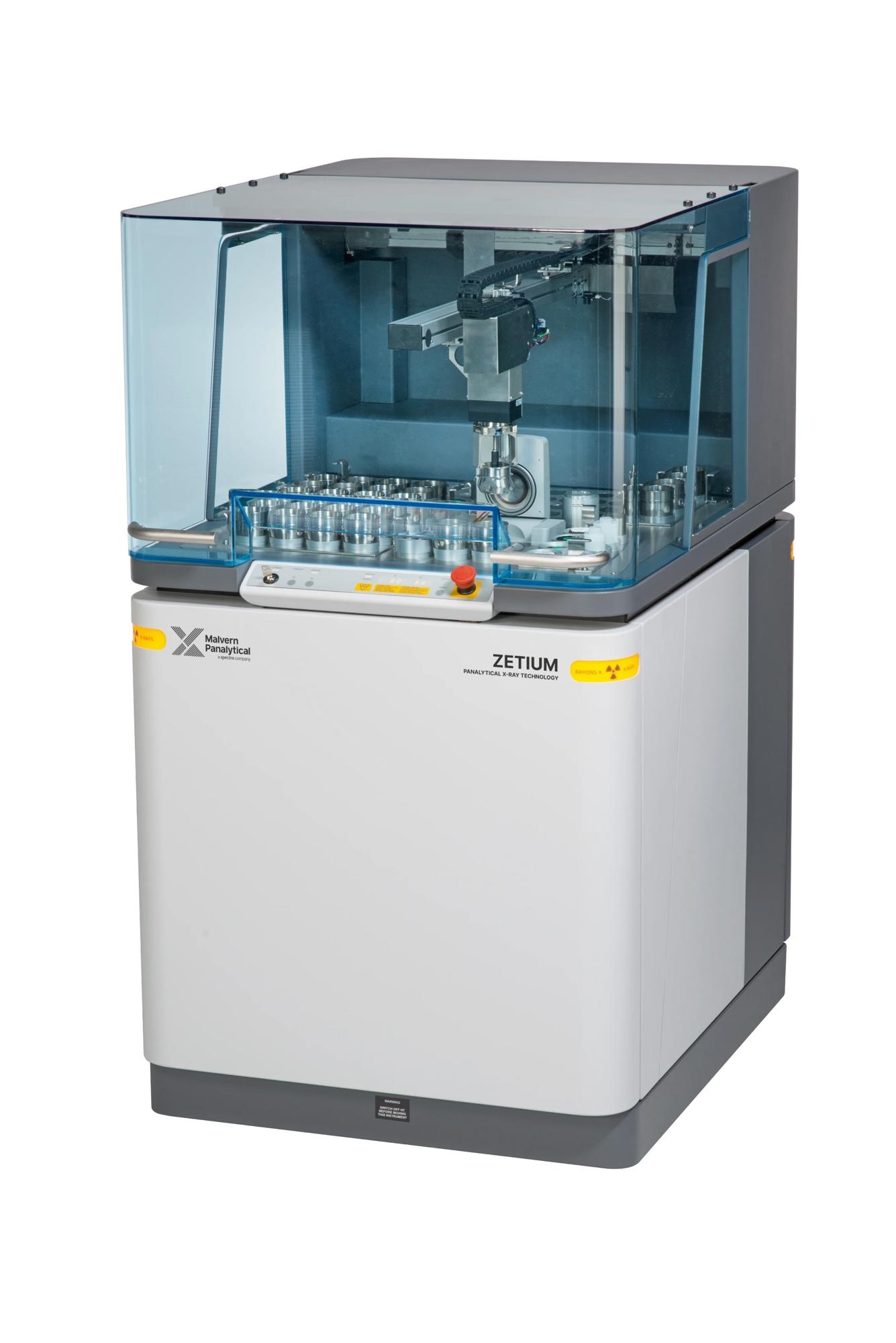

Zetium Spectrometer

X-ray fluorescence spectrometry (XRF) can perform elemental analysis of numerous materials such as liquids, solids, and loose powders. The Zetium spectrometer is built to meet the most demanding requirements in process control and R&D applications. A market-leader, it has high-quality design and innovating features for percentage to sub ppm analysis of Be to Am.

The Zetium is a revolutionary step in materials analysis, and embodies SumXcore technology, which is a combination of EDXRF, WDXRF, and XRD. The Zetium and it's unique combination is in a class of its own possessing speed, analytical power, and task flexibility in numerous environments.

Key Features

The main features of Zetium are listed below:

Enhanced analytical performance

  • Duplex detector for increased sensitivity and broader dynamic range for transition metals analysis
  • Sequential free lime and XRF testing with THETA core
  • Power upgrades ranging from 1 to 2.4, 3 or 4 kW to enhance sensitivity

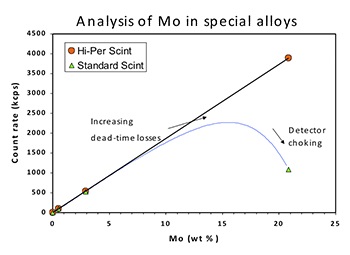

  • HiPer scintillation detector for increased dynamic range for heavy elements suitable for high precision analysis of Mo and Nb in steels
  • X-ray tube anode materials such as Au, Cr, Mo, and Rh to obtain specific application performance

Superior user experience

  • Programmable collimator masks for sizes ranging from 6mm and 37mm
  • The software, The Virtual Analyst, is intuitive and simple
  • Full suite of application setup modules software solutions
  • Multi-element small spot analysis with mapping
  • Industry-leading XRF analysis with Omnian for examining standards that are unavailable or unknown

Maximum sample throughput

  • SumXcore technology helps measurement times to be reduced by up to 50% with an ED core
  • Hi-Per channels for simultaneous measurement of light elements
  • Power upgrades from 1 to 2.4, 3 or 4kW for faster analysis times

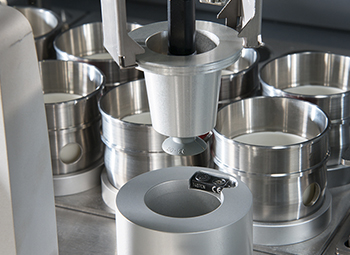

  • Continuous and direct sample loading greatly decreases instrument overhead
  • High-capacity sample changer bed of up to 209 positions for high throughput applications
  • Sample changer bar code reader option helps in quick, error-free sample loading and data entry

Robustness

  • Bar code reader for error-free sample entry
  • Dust removal device reduces contamination and increases instrument uptime
  • CHI-BLUE X-ray tube window coating for enhanced X-ray tube duribility and resistance to corrosion
  • Sample type identification of solids and liquids

Low cost of ownership

  • Compact design

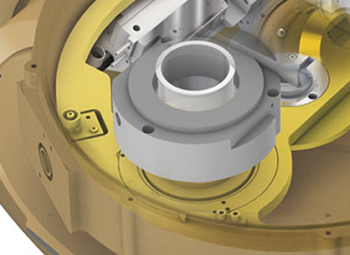

  • Small-volume air lock design enables fast cycling of samples into vacuum, or low He consumption for liquids testing
  • Dedicated chiller performs heat removal from the laboratory, thus eliminating overtaxing laboratory air conditioning infrastructure
  • Easy-access service modules reduce downtime and enable quicker instrument serviceability
  • Packaged cost saving solutions

Application

The Zetium spectrometer offers reliable analytical performance regardless of the application and is suited for testing a broad range of materials.
