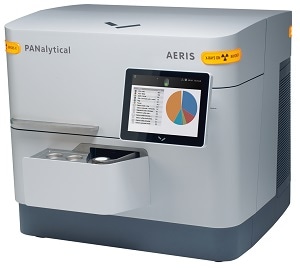

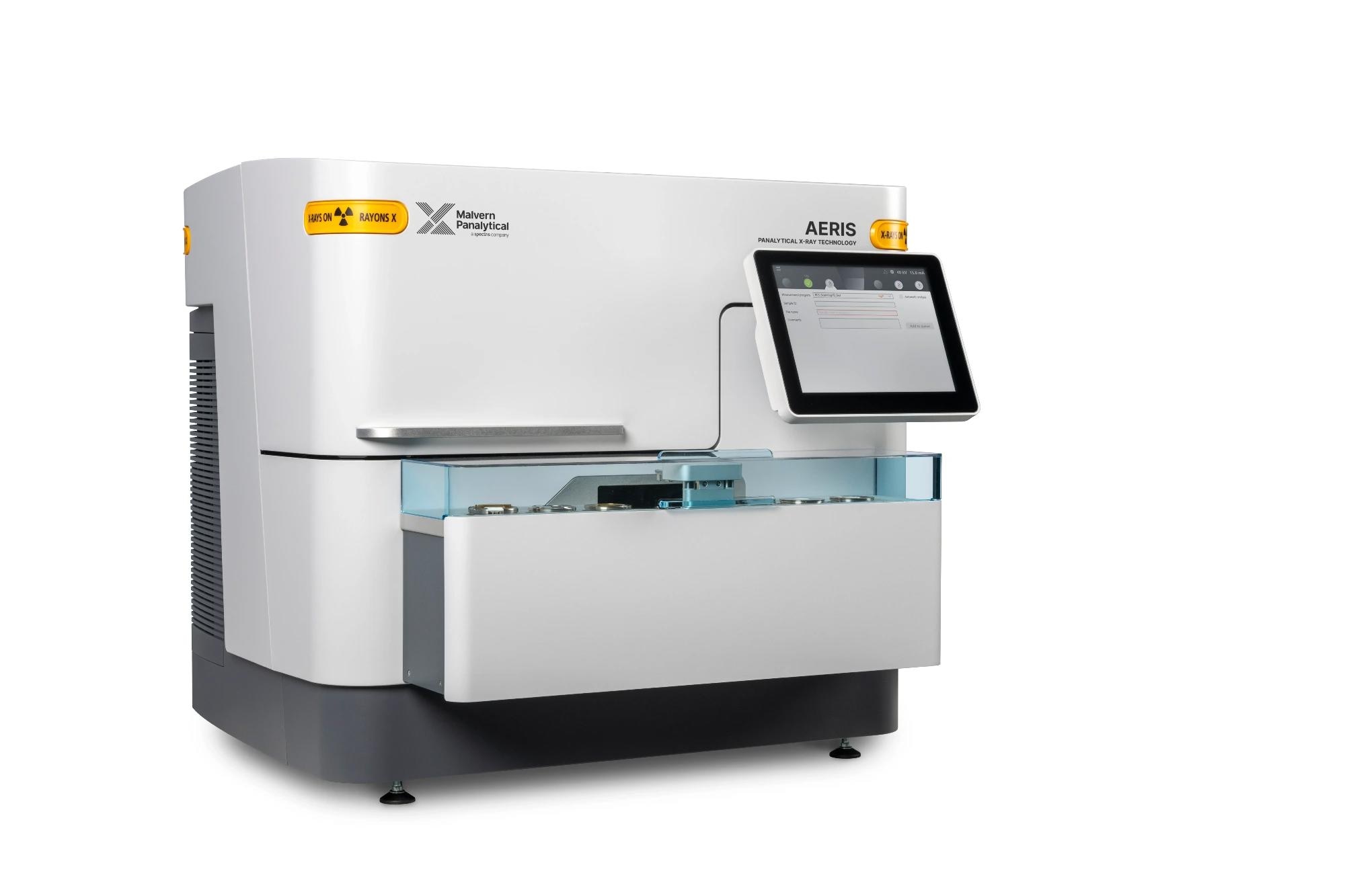

Aeris Cement Edition - Benchtop X-Ray Diffractometer

The Cement edition of Aeris is PANalytical’s X-ray diffractometer for everyone in the cement industry. With Aeris X-ray diffraction (XRD) becomes as easy as making a cup of coffee: Aeris is the most intuitive benchtop XRD instrument with the results of your measurements directly being displayed on the built-in touch screen.

The Cement edition of Aeris is your companion for green and efficient cement production. It’s fully automatable and can be easily incorporated in industrial production control. Aeris comprises proven technologies that have previously on been included with PANalytical’s high-end systems. As a result, data quality and speed of analysis delivered by Aeris have so far only been realized on full-power systems.

Key features:

  • Built-in touch screen
  • Automatable
  • Fits  in your process wherever you need it
  • Low cost of ownership
  • Virtually unlimited lifetime of the tube
  • Limited infrastructural needs (no chiller or gases needed)
  • Small footprint
  • Designed for operator use
  • Best-in-class data quality
  • Ideal teaching tool

Aeris only needs a single-phase power outlet, fits well in any lab and can be used by virtually everyone.


The Aeris Cement edition is configured for the analysis of all cements and intermediates. Aeris is the turn-key solution to analyze raw materials, raw meal, hot meal, clinker, additives or cement. And Aeris is fast: typical measurement times for clinker or cement are 5 minutes only.

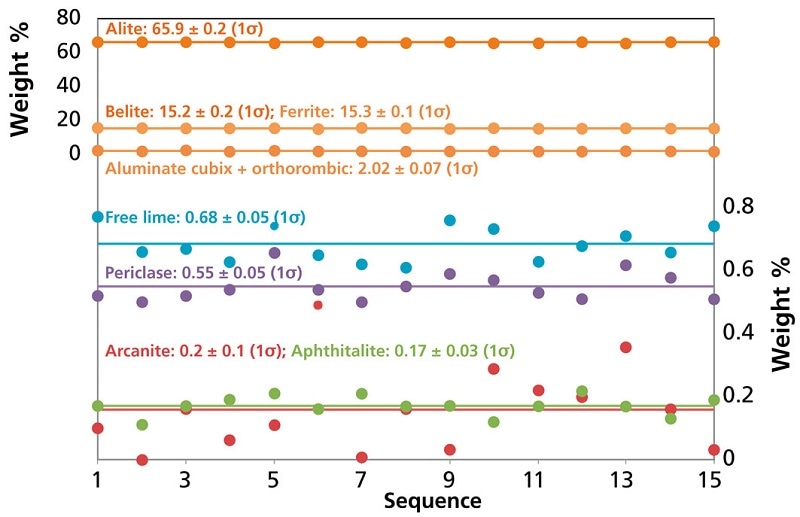

Caption: Repeatability of the mineralogical quantification in a clinker

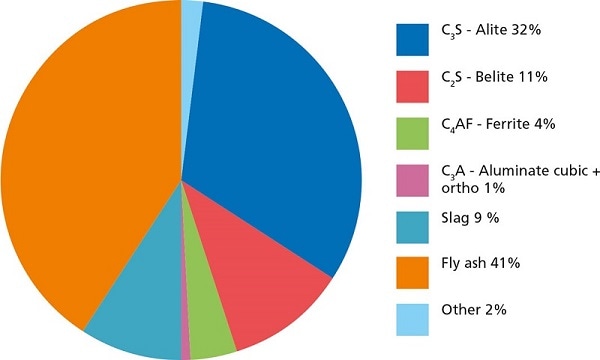

Mineralogical quantification in a blended cement obtaining both slag and fly ash
