The Litesizer DIF series delivers precise particle sizing across a wide range from 10 nm to 3.5 mm, backed by nearly six decades of laser diffraction expertise. Featuring a best-in-class optical setup, it combines powerful 10 mW and 25 mW lasers with the industry’s broadest detected diffraction angle range, spanning 0.01° to 170°.
Designed for ease of use, the Kalliope software streamlines the measurement process - getting started takes just three clicks, with no extensive training required. The intuitive Quick-Click system enables fast, tool-free switching between dispersion units, reducing the risk of setup errors. Built-in safety features for both wet and dry dispersion ensure smooth, secure operation.
With a durable metal housing and an isolated optical bench, the Litesizer DIF performs reliably across a wide range of environments, from rugged industrial settings to advanced research labs.
Building on a legacy of innovation, the Litesizer DIF series represents the next step in laser diffraction technology - precision, made effortless.

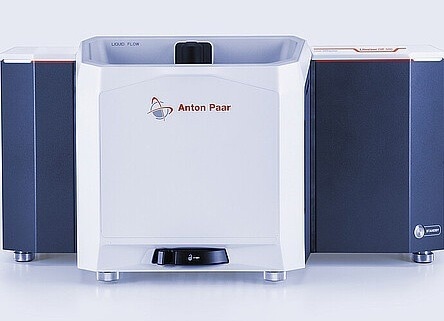

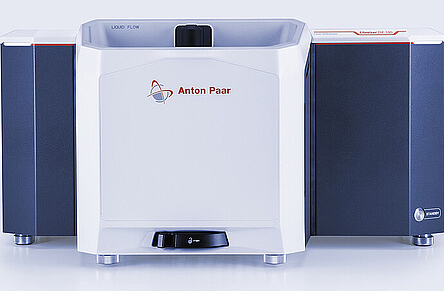

Litesizer DIF 100
- Measure samples from 0.1 µm to 1000 µm
- Switch between liquid and dry dispersion in just one move
- Kalliope software: No training needed, dedicated QC mode
- Reliable results even in harsh environments
Image Credit: Anton Paar GmbH

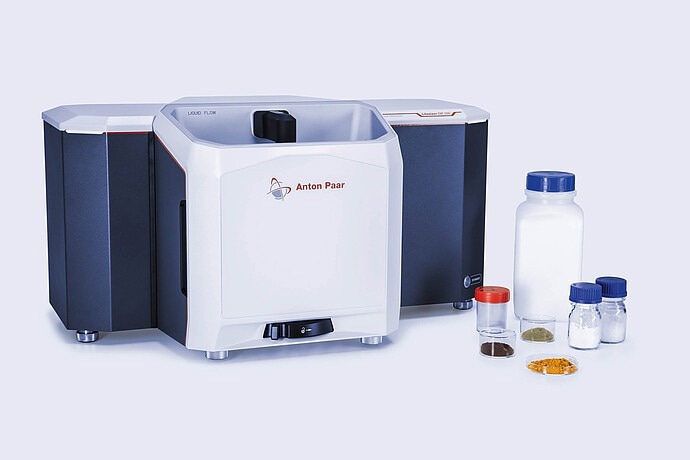

Litesizer DIF 300
- Measure samples from 0.1 µm to 2500 µm
- Switch between liquid and dry dispersion in just one move
- Kalliope software: No training needed, dedicated QC mode
- Reliable results even in harsh environments
- Compatible with the Liquid Flow Imaging dispersion unit
Image Credit: Anton Paar GmbH
Litesizer DIF 500
- Measure samples from 0.01 µm to 3500 µm
- Switch between liquid and dry dispersion in just one move
- Kalliope software: No training needed, dedicated QC mode
- Reliable results even in harsh environments
- Compatible with the Liquid Flow Imaging dispersion unit
Image Credit: Anton Paar GmbH
Key Features
Particle Sizing in any Environment

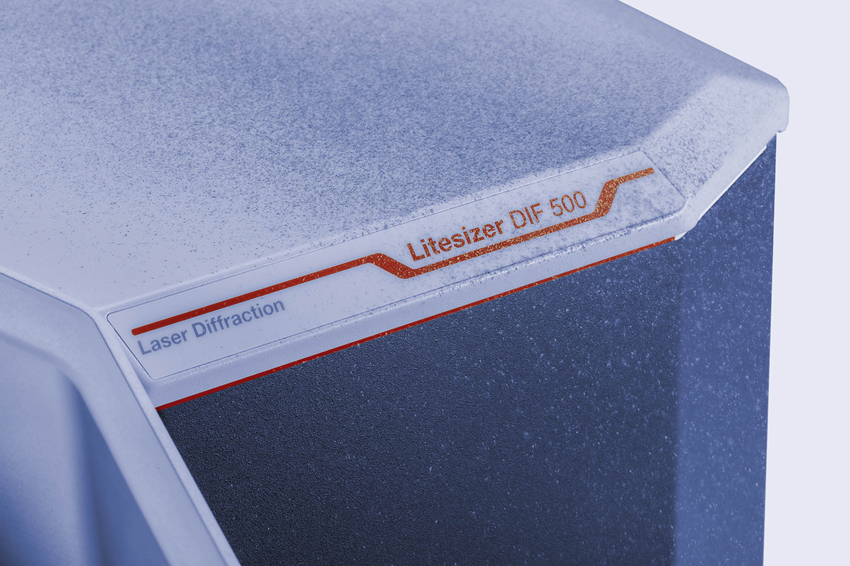

The Litesizer DIF is designed to withstand the demands of heavy industrial environments, thanks to its high-quality components and sturdy metal housing.
Its robust construction ensures that no dust or powder can penetrate the optical bench, and the interior is isolated from direct vibrations at the production site. This exceptional durability translates into significant savings on upkeep and repair costs.
Image Credit: Anton Paar GmbH

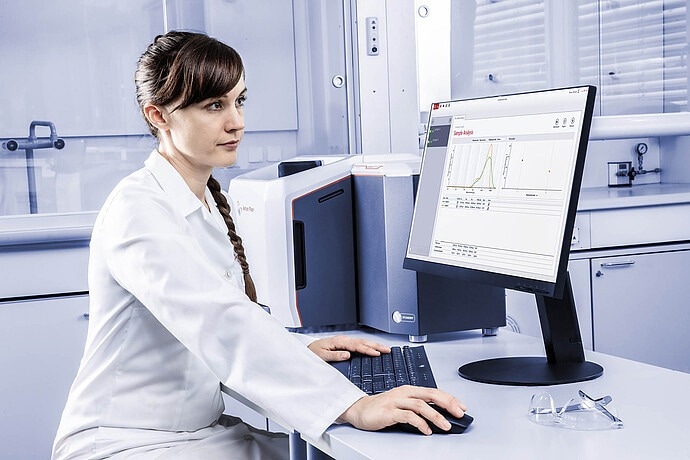

Kalliope: The Benchmark Software for Particle Sizing
The Kalliope software is designed for immediate and intuitive use, featuring a one-page workflow that simplifies parameter setting, data acquisition, and results analysis. This streamlined process allows users to get results in just three clicks, significantly reducing training time.
For consistent, reliable results, the QC mode offers customizable user management and allows for the locking of delicate settings. In this mode, the instrument provides simple feedback on whether your product is within its defined limits.
A pharma option is available that includes robust data security functions, user management, and audit trails, making the software compliant with the US FDA’s 21 CFR Part 11 regulations.
Image Credit: Anton Paar GmbH

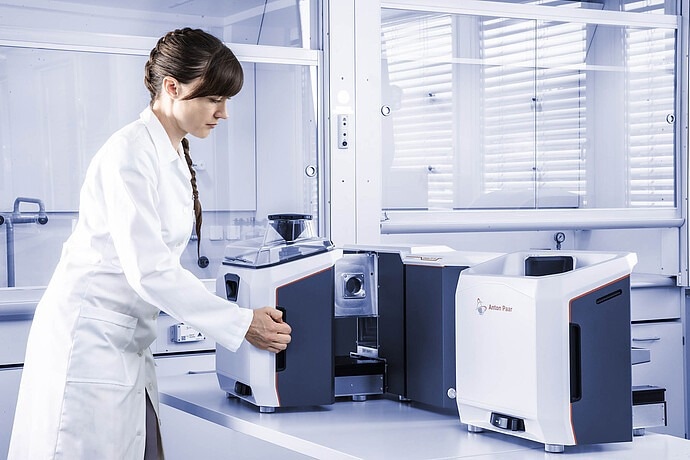

Efficient Dispersion, Maximum Safety
The Litesizer DIF’s Quick-Click feature connects dispersion units in a single, seamless step - there is no need for extra cables, tubes, or pipes. An integrated obscuration level indicator lets users monitor the sample amount in real time, ensuring accurate dosing from the very beginning.
For dry samples, the Dry Jet dispersion unit includes a suction check and a built-in dust cover to help prevent powder from spreading.
The Liquid Flow unit automatically verifies that there is enough liquid before starting sonication, reducing the risk of overheating. A high-resistance module is available to handle chemically demanding samples in particularly aggressive media.
Additionally, the Liquid Flow Imaging unit combines laser diffraction with dynamic image analysis, enabling users to capture particle shape parameters starting from 5 µm in size.
Image Credit: Anton Paar GmbH
On Quality, Anton Paar Leads the Way
The Litesizer DIF is the ideal tool for particle analysis due to its high-quality manufacturing and high-grade hardware, which allows it to collect superior raw data.
This single laser diffraction particle size analyzer can measure a broad range of samples, covering particle sizes from 0.01 µm to 3500 µm, without the need for additional investments.
Image Credit: Anton Paar GmbH

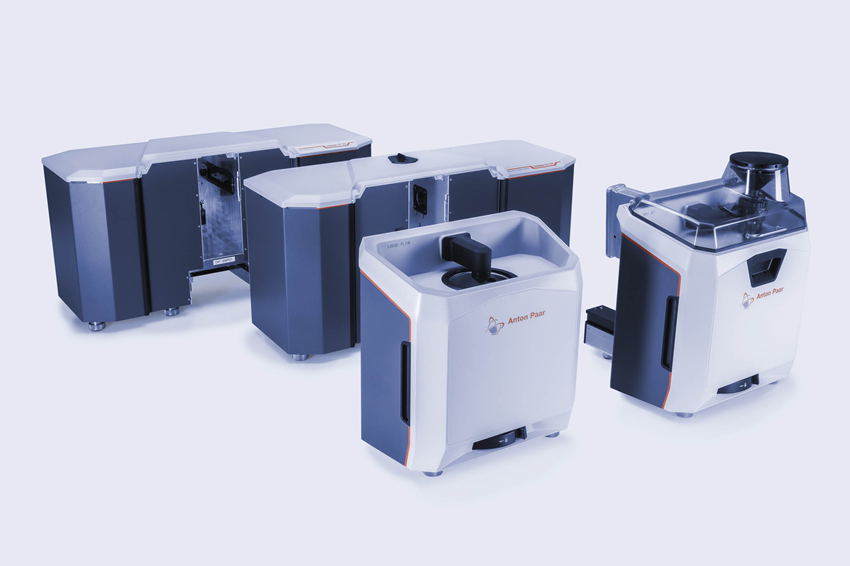

Less Investment, Saved Bench Space – Compatibility Across the Board
The dispersion units used with Anton Paar’s Litesizer DIA and Litesizer DIF instruments are fully compatible, helping reduce overall investment costs and optimize lab space.
Plus, all Litesizer instruments can be operated from a single PC running the Kalliope software, simplifying workflows and minimizing equipment footprint.
Image Credit: Anton Paar GmbH
Specifications
Source: Anton Paar GmbH
| |
Litesizer DIF 500 |
Litesizer DIF 300 |
Litesizer DIF 100 |
| Measurement principle |
Laser Diffraction (Mie and Fraunhofer scattering) |
| Measurement range |
0.01 μm - 3,500 μm |
0.1 μm - 2,500 μm |
0.1 μm - 1,000 μm |
| Size classes |
144 (user adjustable) |
114 (user adjustable) |
104 (user adjustable) |
| Accuracy * |
better than ± 0.5 % variation*** |
| Repeatability |
better than ± 0.5 % variation*** |
| Reproducibility** |
better than ± 1 % variation*** |
| Possible measurement duration |
<10 sec |
| Data acquisition rate |
16 kHz |
| Light source 1 |
|
| Type |
Fiber coupled laser diode |
| Optical arrangement |
Reverse Fourier |
| Wavelength |
830 nm, infrared |
| Power |
10 mW |
| Laser Class |
Class 1 (IEC60825-1) |
| Light source 2 |
Litesizer DIF 500 |
- |
| Type |
Diode laser |
- |
| Optical arrangement |
Tilted relative to IR laser |
- |
| Wavelength |
450 nm, blue |
- |
| Power |
25 mW |
- |
| Laser Class |
Class 1 (IEC60825-1) |
- |
| Detectors |
|
| Type |
Log-spaced photo diode array and single diodes for side and back-scattering |
| Angular range |
0.01° - 170° |
0.01° - 155° |
|
| Focal length |
300 mm |
| Alignment |
Automatic |
| Instrument data |
|
| Instrument dimensions**** |
400 mm x 790 mm x 290 mm (H x W x D) |
| Instrument weight**** |
42.3 kg (93.2 lb) |
| Power supply |
100 V to 240 V ±10 %, 50/60 Hz |
Trademarks:
• Kalliope (EU: 012709391), (UK: UK00912709391)
• Litesizer (EU: 011695491), (UK: UK00911695491)
* Defined for a monomodal latex standard and accounting for the manufacturer's uncertainty of standard size.
** Defined for D50 of a polydisperse standard.
*** Sample and preparation dependent. Defined for liquid dispersion measurements.
**** Without PC and dispersion unit
