Boost Rheology Confidence with the ARES-G3™ Rheometer’s Precision Measurement Technology

The Waters TA Instruments ARES-G3 Rheometer advances rheology by delivering crisper results across a wider range of conditions. Built on 55 years of rheology research, it uses cutting-edge technology and precise hardware to record genuine fluid behavior with fewer modifications and more accurate results.

Rheology is the study of how materials flow and deform. It is based on two fundamental measurements: the strain given to a material and its reaction. These observations demonstrate the complicated behaviors of a wide range of materials, from low-viscosity fluids to rigid composites, under varying conditions.

Precision Powered by Innovation

The ARES-G3 Rheometer, which features sophisticated motor technology and a force-rebalanced transducer (FRT), provides improved precision and consistent performance in crucial rheological measurements.

• Measurement accuracy: Achieve measurements closer to genuine fluid dynamics with no geometry or inertia calibrations required, enabled by separate motor transducer (SMT) technology and perfect temperature control for reliable high-temperature testing
• Data and insights: Collect high-quality data under a wider variety of rheological conditions with dual data acquisition, quicker rates, and increased functionality. Cut QC testing time by up to 80% with the integrated ideally windowed chirps (Fast Frequency Chirps) approach
• Usability and efficiency: Benefit from modern, straightforward software with fewer calibrations, walk-up usability, and quicker throughput for a smooth and efficient testing experience

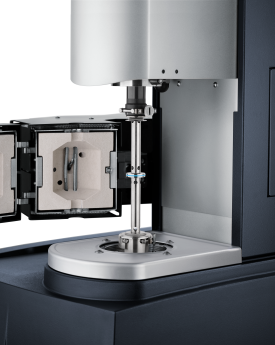

Engineered for Next-Generation Rheology

Image Credit: TA Instruments

• Reliable testing environment: For polymer and composite testing, dual gun heaters provide quicker, more precise oxygen exclusion.
• Superior accuracy: Separate motor transducer (SMT) technology and the force-rebalanced transducer (FRT) provide cutting-edge data with minimum modifications.
• Enhanced data capture: High-speed acquisition and Fast Frequency Chirps reduce test times by up to 80%.
• Intuitive controls: The updated touchscreen and keypad facilitate experiment setup and operation.
• Trustworthy data: Users can access raw phase angles and waveforms for a deeper understanding.
• Software: The TRIOS Express Software provides rapid setup, fewer calibrations, and walk-up usability.

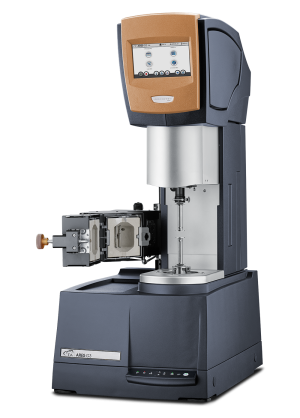

Separate Motor and Transducer (SMT) Technology

Image Credit: TA Instruments

The ARES-G3 Rheometer’s SMT design raises the bar for precision by separating the motor from the measurement, eliminating typical calibration methods and revealing complex material characteristics that standard systems sometimes overlook.

This independence is notably useful for high-fidelity deformation testing procedures, such as large-amplitude oscillatory strain (LAOS), as well as for assessing soft or complex materials like emulsions and polymers under difficult conditions.

At the core of SMT is the force rebalanced transducer (FRT), which remains static and catches the sample’s real response with minimal disturbance from motor dynamics. When combined with the strong drive motor, it produces clearer data free of mechanical noise, providing researchers more confidence in their rheological findings.

One Rheometer: Multiple Uses

Thermosets

Thermoset testing necessitates rapid, precise insight into curing, gelation, and viscoelastic changes when materials respond to heat. Advanced technologies such as Fast Frequency Chirps open up a new level of cure investigation, while precise thermal management and SMT design provide consistent results across a wide temperature range.

Complex Fluids

Complex fluids, such as emulsions, suspensions, and slurries, display dual-phase behavior and intricate mechanical reactions. Advanced rheological tools give the necessary control and clarity to identify their underlying interactions and connect them to bulk characteristics.

Polymer Melts

Polymers transform from viscous melts to stiff solids, necessitating complete rheological characterization, extensional viscosity, melt rheology, and DMA to optimize processing and performance. Advanced tools with purpose-built hardware and Fast Frequency Chirps methods speed up testing while reducing corrections.

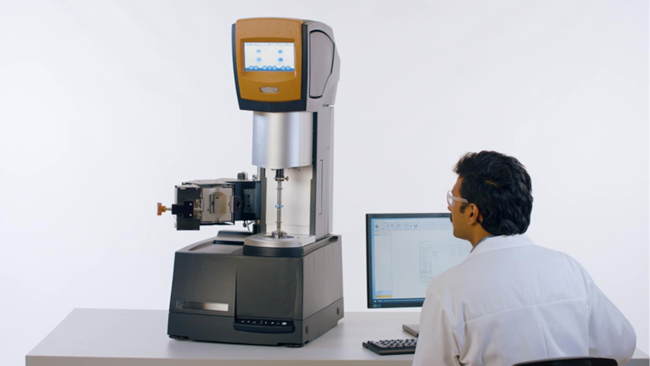

Revolutionizing Rheology with Fast Frequency Chirps Technology

Image Credit: TA Instruments

The new optimally windowed chirps (Fast Frequency Chirps) technology, which is integrated into TRIOS Software, changes rheology frequency sweeps by significantly increasing speed and data density, particularly at low frequencies. Fast Frequency Chirps generates ramping temporal temperature superposition (TTS) master curves in less than one hour, replacing multi-hour testing without sacrificing accuracy.

Unlike traditional single-frequency approaches, Fast Frequency Chirps uses quick sweeps to detect fast-changing systems such as curing or chemical processes, making it appropriate for polymers, thermosets, and composites. Fast Frequency Chirps is fully integrated into TRIOS Software and simplifies operations with automated analysis, resulting in faster, higher-quality results with simplicity.

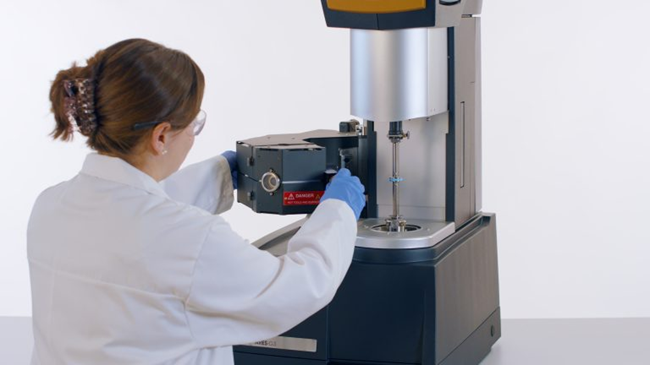

Enhanced Measurement Capabilities

Image Credit: TA Instruments

The ARES-G3 Rheometer, with its cutting-edge technology and efficient SMT design, is an excellent solution for advanced testing applications. Its rapid-response motor enables accurate execution of complex or user-defined deformation patterns, offering versatility beyond traditional testing standards.

Meanwhile, the force rebalanced transducer (FRT) technology delivers data integrity with little adjustment, producing findings that closely resemble actual material behavior and instill complete trust in analysis.

Real Rheology for Real-World Applications

Rheology is most useful when it accurately represents real-world performance. The ARES-G3 Rheometer replicates a wide range of circumstances, including temperature changes, force, and pressure, allowing materials to be developed and tested with confidence and accuracy.

Environmental

Image Credit: TA Instruments

The forced convection oven (FCO) and advanced peltier system (APS) provide fast temperature control and flexible testing options. Both accessories use SmartSwap technology for simple, plug-and-play installation.

Simultaneous Measurement

Image Credit: TA Instruments

Expand on fundamental rheology by using many analytical approaches (dielectric, electric fields, UV) to understand how a material flows when exposed to an external stimulus.

Beyond Rheology

Image Credit: TA Instruments

The ARES-G3 Rheometer’s precise stress and strain controls enable measurements beyond normal rheology to investigate tribology, interfacial, linear dynamic mechanical analysis (DMA), extensional rheology, cone partition plate, and orthogonal superposition (OSP).

Ultimate Upgrade Flexibility

The ARES-G3 Rheometer has a modular design and a high-performance core, providing a scalable platform that adapts to research and quality control requirements.

• Faster processes can expedite regular testing and data processing, hence improving lab productivity
• Expanded testing capabilities include support for solid material testing and sophisticated viscoelastic measures
• Enhanced data acquisition helps capture more comprehensive, concurrent data for better material insights
• Advanced control features enable sophisticated deformation profiles and waveform customization for cutting-edge research

Legacy and Support

Image Credit: TA Instruments

Since the 1970s, TA Instruments has helped pave the way for rheology innovation, offering expertise and excellence to the labs it serves. The team of qualified application scientists and seasoned service professionals combines technical expertise with real-world experience to ensure that users get the most out of their investment.

This legacy of quality fuels the commitment to provide rapid, knowledgeable support that is always focused on lab success.

Specifications

Source: TA Instruments
