The Autosorb 3300 chemisorption analyzer automates catalyst characterization, enabling critical measurements to be completed efficiently, consistently, and with minimal operator effort. A user-friendly ergonomic interface enhances usability, while the liquid-cooled furnace supports safe operation at temperatures reaching 1200 °C.
The system supports a range of measurement techniques, including TPR, TPO, TPD, TPSR, acid and basic site analysis, and pulse titration for evaluating active metal area and dispersion.
Method development is simplified through four built-in titration loops, while a robust four-filament TCD ensures dependable, high-sensitivity detection. Equipped with 12 gas inlets and two mass flow controllers, the analyzer can generate as many as 36 gas mixtures to accommodate diverse application requirements.
- Automated pulse chemisorption along with TPR/TPO/TPD analysis
- Four-filament TCD for highly sensitive chemisorption measurements
- Integrated gas-mixing capability supporting up to 36 mixtures
- Safe-touch furnace for temperatures up to 1200 °C
- Four built-in precision titration loops for reproducible injections
Key Features
Essential Chemisorption Done Right: No Guesswork, No Hassle
This chemisorption analyzer streamlines operation through a workflow that minimizes nearly all manual intervention. Automatic cell connection, leak verification, furnace positioning, and loop selection eliminate the need for routine hands-on adjustments.

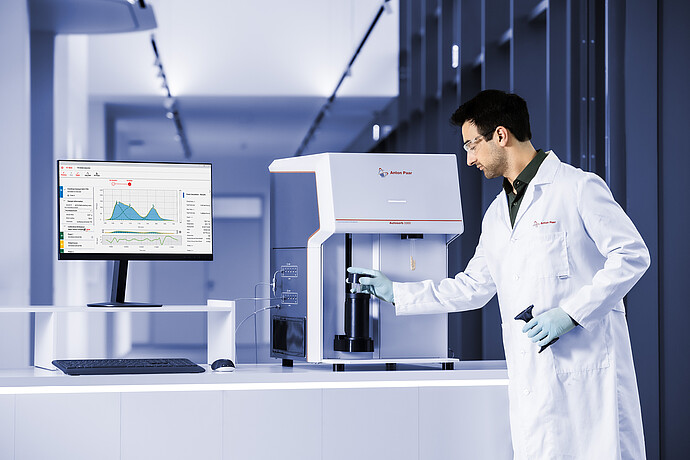

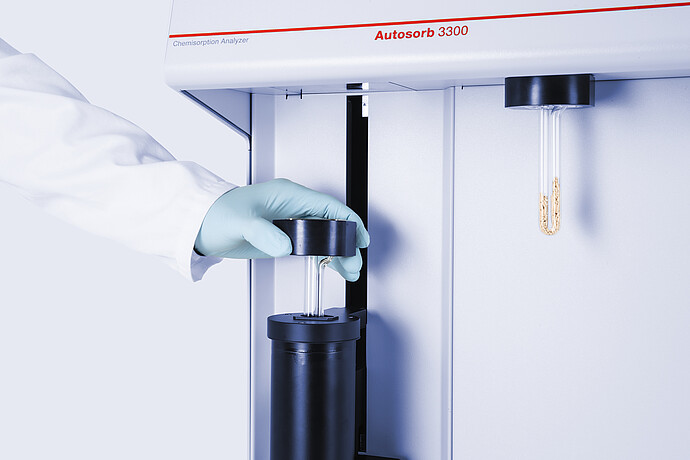

To begin an analysis, operators simply place the sample cell assembly in the furnace and start the run. By reducing user interaction, the system shortens training time, improves consistency between operators, and supports efficient laboratory operation without constant supervision.
Image Credit: Anton Paar GmbH
Lowest Operating Costs in Its Class

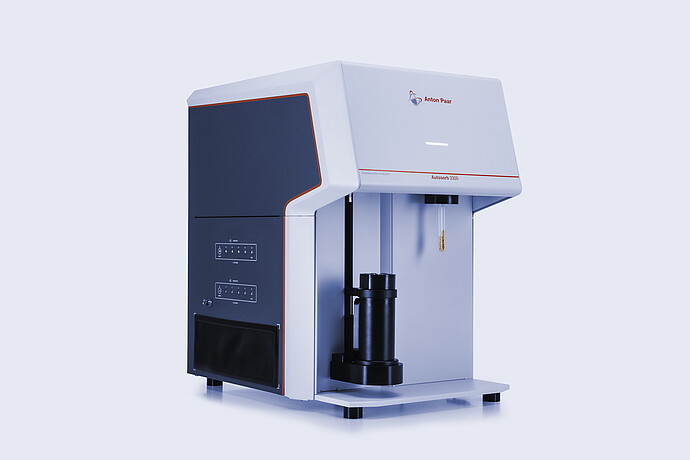

Engineered for dependable performance in both R&D and QA/QC settings, the Autosorb 3300 helps reduce the cost of analysis by minimizing consumable requirements and lowering gas usage. Built-in gas blending decreases the number of cylinders and regulators needed for operation.
A regenerable zeolite vapor trap eliminates the need for liquid nitrogen cooling during TPR, while optimized flow pathways support reduced gas flow rates and more efficient gas exchange. Users do not need to replace septa, syringes, ferrules, or O-rings, and compressed air is not required for cooling, meaning laboratories can achieve lower ongoing operating costs and experience fewer interruptions to routine workflows.
Image Credit: Anton Paar GmbH
The Same Conditions Lead to the Same Results: Precision Every Time
Accurate catalyst characterization requires consistent, highly repeatable measurements. The Autosorb 3300 chemisorption analyzer delivers this automatically through an integrated, pre-calibrated loop system that provides true injection volumes controlled for temperature and pressure, regardless of environmental variations.
For all temperature-programmed methods, the Autosorb 3300 uses a high-sensitivity, current-controlled four-filament TCD to ensure precise detection. The system can resolve small titration peaks and quantify active areas as low as 0.03 m2 (H2 on platinum at 313 K), supporting dependable catalyst characterization even at very low metal loadings.
Image Credit: Anton Paar GmbH
Thermal Power That Outpaces Every Legacy System
Enhanced thermal performance in the Autosorb 3300 supports higher productivity and improved analytical clarity. The system achieves rapid temperature ramping, reaching 800 °C at rates of up to 100 °C/minute and 1200 °C at rates of up to 25 °C/minute. Cooling to 50 °C can be completed in as little as 30 minutes, increasing sample throughput while maintaining safe operation.
The compact furnace design enables highly responsive temperature control, which is essential for TPR, TPO, and TPD measurements. This capability supports linear temperature ramps, precise hold periods, and stable baselines throughout the analysis.
Image Credit: Anton Paar GmbH
Engineered for Maximum Safety

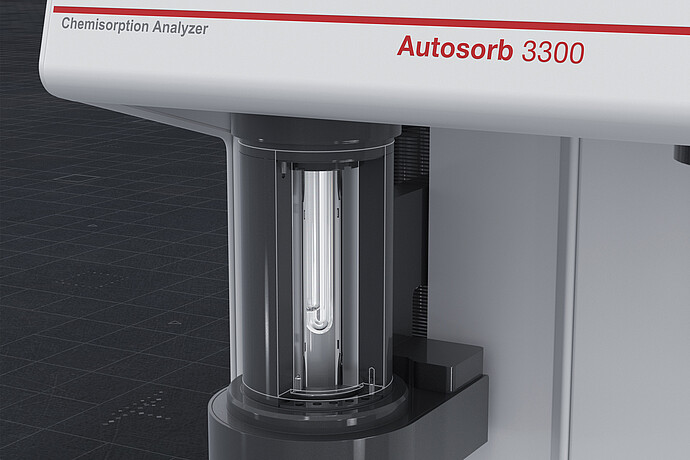

For challenging chemisorption applications, the Autosorb 3300 chemisorption analyzer delivers controlled heating and cooling profiles. Even during high-temperature operation, the safe-touch design maintains the exterior surface within 34 °C of ambient temperature, helping protect operators during testing.
Image Credit: Anton Paar GmbH
Powerful Software for Catalyst Characterization

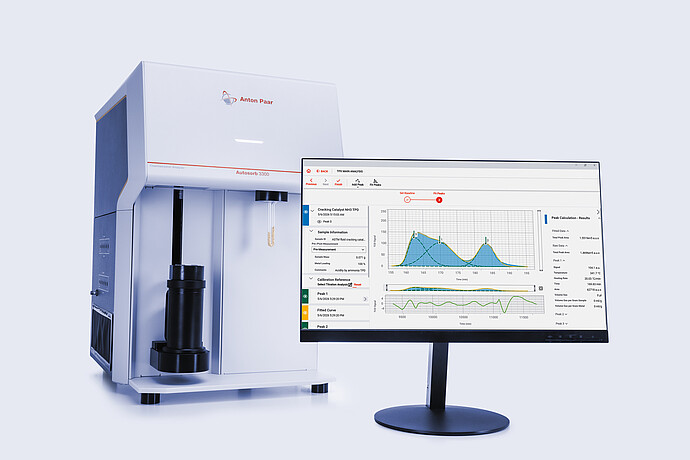

Autosorb 3300 is operated through Kaomi React, a workflow-driven software platform designed to support consistent method execution. The software features real-time instrument monitoring, method and sequence editing tools, and guided workflows for pulse titration and peak deconvolution.
Reports for active metal area, dispersion, and other catalyst properties are generated quickly and reproducibly.
Image Credit: Anton Paar GmbH
Specifications
Source: Anton Paar GmbH
| Applications |
| Petrochemical catalysts |
Petroleum cracking, oxidation, hydrocarbon reforming, steam reforming, water-gas shift |
| Catalyst regeneration |
Coked and sintered (used) catalysts |
| Hydrogen generation |
Ammonia decomposition, electrolysis electrodes |
| Fuel cells |
Redox electrodes |
| CO2 capture and utilization |
Solid bases (e.g., amine-functionalized, hydrogenation catalysts) |
| Performance Specifications |
| Measurement types |
TPR, TPO, TPD, TPSR, pulse titration, breakthrough curves |
| Analysis types |
Active metal area, dispersion, crystallite size, activation energy, acid site strength, quantitative desorption, peak fitting, and deconvolution |
| Injection repeatability |
<0.4% of loop volume |
| Peak temperature reproducibility |
<0.8% (Zeolite ammonia TPD) |
| Active area reproducibility |
4% (measured on 2% platinum on alumina reference sample) |
| Technical Specifications |
| Furnace |
Safe touch (surface temperature never more than 34 °C above ambient) |
| Sample temperature range |
40 °C to 1200 °C |
| Furnace heating rates |
40 °C to 800 °C: Up to 100 °C/minute
800 °C to 1000 °C: Up to 50 °C/minute
1000 °C to 1200 °C: Up to 25 °C/minute |
| Minimum heating rate |
0.08 °C/minute |
| Furnace cooling type |
Closed-circuit liquid circulation |
| Cooling rate |
800 °C to 50 °C in 26 minute, 500 °C to 50 °C in 22 minutes
400 °C to 50 °C in 20 minutes, 100 °C to 40 °C in 12 minutes |
| Detector |
Four-filament W/Re TCD (ammonia- and oxidation-resistant) with bypass valve |
| Injector loops |
Four integrated loops (145 μL, 275 μL, 525 μL, 1125 μL nominal) |
| Gas blending |
Built-in using two MFCs (50 sccm each) |
| Analysis/carrier gas inputs |
Six (one inert, four standard, one PFE) |
| Injector/blend gas inputs |
Six (one inert, four standard, one PFE) |
| Gas input compatibility |
Inert: He, Ar, and other inert gases
Standard: Inert + N2, CO2, CO, H2, O2, N2O
PFE: Standard + CH4, NH3 |
| Heated valve box |
50 °C (stability ±0.3 °C) |
| Sample cell |
Quartz U-tube with 3 mL sample capacity, with bypass valve |
| Vapor trap |
Standard dry absorber, with bypass valve |
| Accessories |
Cold trap, mass spectrometer, vacuum pump |
| RoHS 3 compliant, CE certified |
✓ |
