AccuSorp HP is designed for analysis of static physisorption, offering publication-grade data up to 200 bar. The system provides accurate measurements for every process and is automated, resulting in consistent outcomes.
Advantages
- Performance: Insight into material performance under process-relevant pressures
- Speed: More samples can be run, with reduced operator burden and waiting time
- Accuracy: Publication-grade accuracy for confident decisions
Introducing AccuSorp HP
The AccuSorp HP (High Pressure) system is a static high-pressure gas adsorption analyzer designed to measure surface area, adsorption kinetics, porosity, and gas storage capacity of materials at pressures up to 200 bar, a condition that is typically found in real-world applications.
Backed by over six decades of Micromeritics’ experience in gas adsorption technology, the system ensures automated operation, publication-grade accuracy, and consistent outcomes to meet the requirements of industrial quality control and the latest research and development.
Process-Relevant
Characterization at Process-Relevant Conditions
The physisorption analyzer characterizes materials at operating pressures up to 200 bar, ensuring laboratory data predicts industrial performance. It allows users to make data-backed decisions to optimize processes across various applications such as carbon capture, gas separation, gas storage, and more.
More High-Pressure Adsorption Data With Less Pressure on Operators
Conventional high-pressure adsorption analysis technology affects productivity and requires frequent operator intervention during long analytical procedures. AccuSorp HP differs by allowing dual-sample analysis and providing consistent accuracy, while preventing the need for manual intervention. This enables laboratories to analyze more samples with reduced burden, while trusting each data point.
The system is designed to enable laboratories to achieve reproducible results at scale, without the challenges faced by conventional processes.
Video Credit: Malvern Panalytical

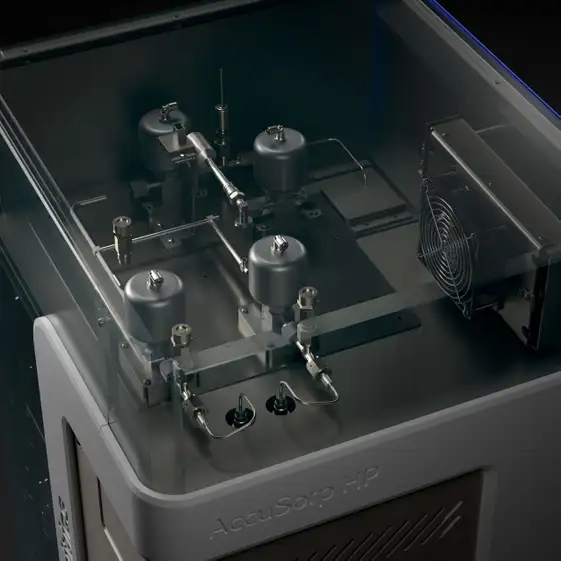

Publishing-Ready Accuracy
- Blank tube tests confirm ±0.1% error at 100 bar, providing confident measurement even with small sample quantities
- Kinetic data captured every 0.1 seconds
- ±0.04% full-scale transducer accuracy
- Manifold temperature stable within ±0.02 °C
Image Credit: Malvern Panalytical

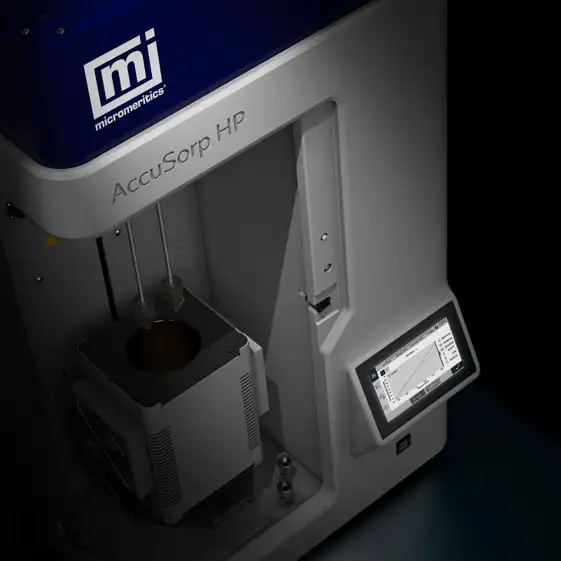

True Walk-Away Automation
- Restrictor plates avoid pressure overshoot, saving analysis gas and time
- Automated elevator for dual-free space measurement
- Touchscreen-based stored methods ensure continuous analysis from start to finish, without operator intervention
- Dual servo valves achieve target manifold pressures within <1%
Video Credit: Malvern Panalytical

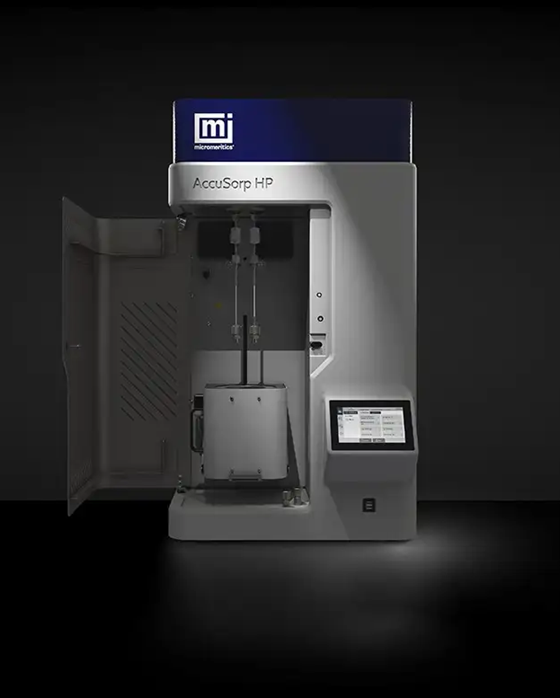

Throughput That Keeps Users on Target
- Compatible with dedicated degas stations, including Smart VacPrep and new VacPrep (specifically designed for AccuSorp HP)
- Dual analysis ports for two sample runs in parallel
- Automated steps remove manual interruptions in the middle of the process, enabling laboratories to attain high-qaulity, consistent results
- Separate degas preparation to minimize downtime and avoid risk of contamination
Image Credit: Malvern Panalytical

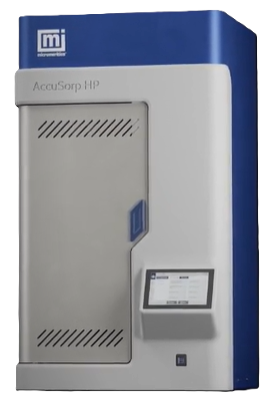

Risk-Free Operation for Worry-Free Deployment
Image Credit: Malvern Panalytical
Rigorous safety features provide peace of mind for procurement professionals and operators, even during operation from remote locations.
Flammable Gas Detectors
Automatically shut down the system and vent to safe pressure when 1% concentration is detected, below the lower explosive limit of light hydrocarbons and hydrogen.
Locking Mechanical Door
Reduces the need for interference when cold or hot temperature control devices are in use or when the system is pressurized.
Two Mechanical Relief Valves
Set to 207 bar and two bar to protect the system against over-pressurization.
Certified Safe for Worldwide Deployment
The third-party CE declaration and ETL Mark (NRTL) conform to the Pressure Equipment Directive (PED) 61010-1.
Smart Software. Seamless Decision-Making
Malvern Panalytical’s intuitive MicroActive software provides absolute isotherms and publication-grade excess without manual post-processing. This enables users to shift from data reduction to decisive action.
- Remote connectivity for reviewing data or monitoring the status of analysis from any place
- Automatic generation of excess and absolute isotherms for publication-ready results
- LIMS integration and seamless reporting are possible through automatic data export to PDF, TXT, and XLS formats
- HOA (heat of adsorption) and IAST (ideal adsorbed solution theory) calculations integrated for detailed material insights
Video Credit: Malvern Panalytical

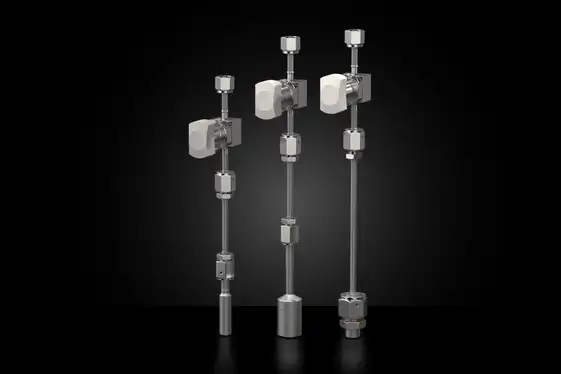

Engineered for Users’ Samples
AccuSorp HP supports various sample tube sizes to suit different sample quantities, types, and research needs:
- Two 2 cc analysis chambers (alternative and standard configuration)
- A 10 cc analysis chamber for lower-density or larger samples
With ±0.1% error confirmed at 100 bar, AccuSorp HP provides consistent data even with very small sample quantities. This assists users working with scarce, novel, or expensive materials such as covalent organic frameworks, metal organic frameworks, and advanced sorbents.
Image Credit: Malvern Panalytical

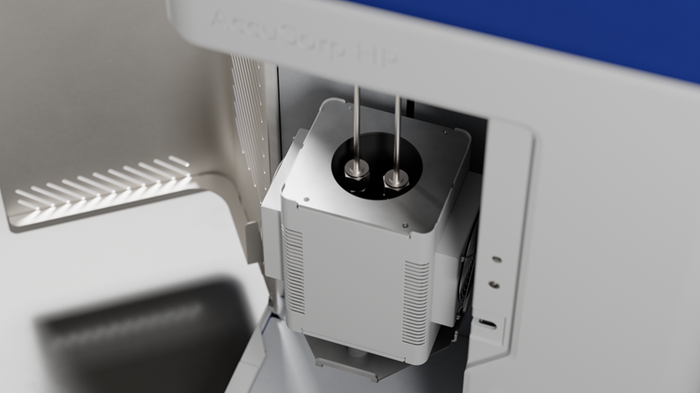

Temperature Control
Image Credit: Malvern Panalytical
Precision Conditions Deliver Accurate Results
The system is compatible with various temperature control devices, enabling laboratories to work seamlessly in elevated and cryogenic temperature conditions.
Applications
Backed by more than 60 years of Malvern Panalytical’s experience in gas adsorption, the system provides highly efficient results in various applications, for example, for researchers working with novel materials or performing high-throughput production quality control.
- Carbon capture, utilization, and storage (CCUS): Screen and compare sorbents at scale
- Hydrogen and natural gas storage: Benchmark materials with consistent workflows
- Catalysts: Allow for reproducible adsorption characterization supporting performance evaluation
Specifications
AccuSorp HP is a physisorption analyzer that provides high-precision results at pressures up to 200 bar. Its automated features streamline workflows across both industrial quality control and research labs.
Analysis capabilities. Source: Malvern Panalytical
| . |
| Analysis range |
0.00013 to 200 bar |
| Transducer accuracy |
200 bar ±0.04% FS
1 bar ±0.1% FS |
| Sample ports |
Two |
| Gas inlets |
Three |
| Pressure relief valves |
Two, set at 2.5 bar and 207 bar |
| Hydrogen sensors |
Two, triggered at 1% concentration |
| Dosing and evacuation control |
Two Servo Valves within <1% of target |
| Compatible gases |
H2, CO2, CH4, N2, He, Ar, C2H6, C2H4, C3H8, C3H6, NH3, and O2*
*For safety, O2 is limited to 10 bar and requires a dry pump |
| Manifold temperature |
30-50 °C ±0.02 °C |
| Sample temperature |
80–500 °C ± 0.1 °C Furnace
-5–105 °C ± 0.1 °C ISO Controller |
Physical. Source: Malvern Panalytical
| . |
| Dimensions |
104 cm height
60 cm width
70 cm depth |
| Weight |
60 kg |
| Power |
100–240 VAC, 50/60 Hz, 500 VA |
| Sample chambers |
10cc 1/4" opening
2cc 1/4" opening
2cc 1/2" opening |
| Product compliance |
RoHS and REACH Compliant
EMC compliance to FCC, CISPR 11, ICES, IEC 61326-1, UL, and EN standards
CSA C22.2#61010-1-12
IEC 61010-1; IEC 61010-2 |

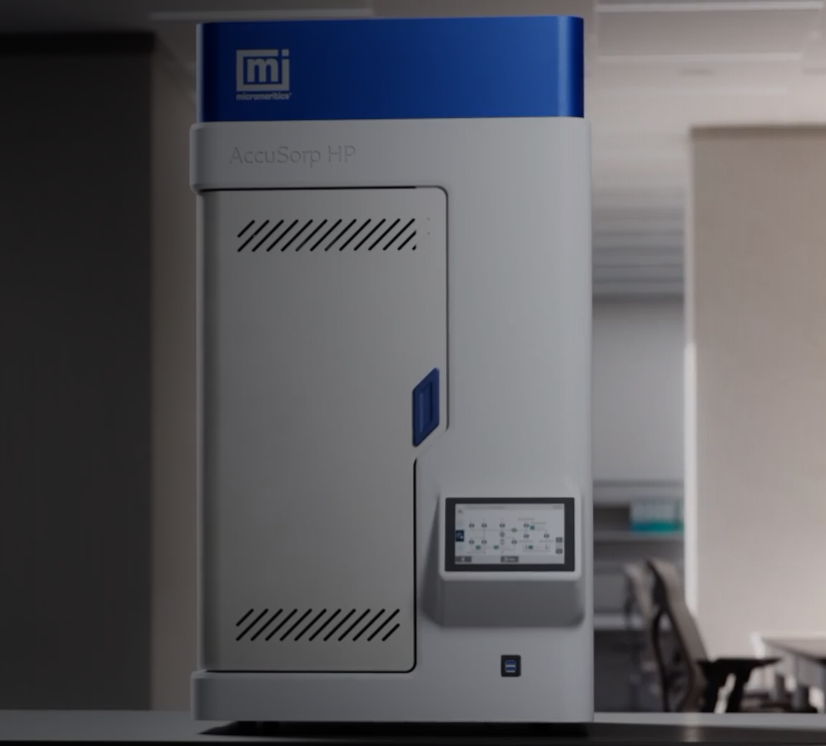

Step Up the Lab Efficiency Without Stepping Up the Workload
Image Credit: Malvern Panalytical
AccuSorp HP automates accuracy for high-pressure performance. It can improve productivity with:
- Dual analysis ports for parallel sample runs
- ±0.04% full-scale transducer accuracy and ±0.1% error at 100 bar
- Automated system ensures continuous process flow without the need for operator intervention
- Intuitive MicroActive software for effortless data reduction process
- Publication-grade data at process-relevant pressure
