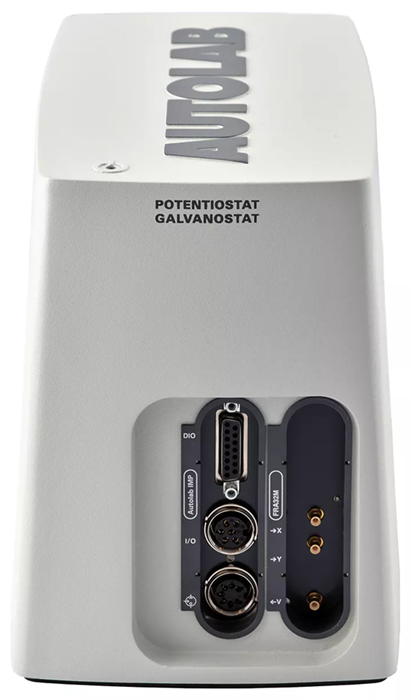

The Autolab IMP is a compact potentiostat/galvanostat with integrated EIS functionality. Its overall specifications - ±10 V compliance, measured and applied voltage, ±100 mA measured and applied current, an EIS frequency range from 10 μHz to 1 MHz, and an included analog integrator - make it an ideal instrument for educational laboratories as well as for initiating new electrochemistry projects.
The Autolab IMP is controlled and supplied with the powerful NOVA software, which includes a dedicated “EC Fundamentals” procedures library to simplify the learning of electrochemistry. Analog and digital inputs and outputs are available for controlling Autolab accessories and external devices.
Download the Brochure for More Information
Tech Specs
Source: Metrohm USA Inc.
| |
|
| Potential range in volts |
± 10 |
| Compliance voltage range in volts |
± 10 |
| Maximum current in ampère |
± 0.1 |
| Number of current ranges |
7 |
