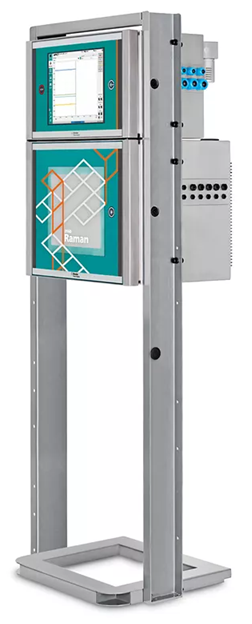

Engineered for nonstop inline process surveillance, the 2060 Raman Analyzer delivers essential insight into production operations. It enables close oversight of every stage of the manufacturing line, helping to maintain uniform product quality without requiring samples to be sent to a laboratory instrument.
- Up to five sample streams can be connected for inline Raman measurement
- Built-in reference channel enables smooth calibration procedures
- Automatic Raman shift calibration ensures strong reproducibility
- Analytical results are available in under 10 seconds
- Operation without chemicals supports environmentally responsible and economical monitoring
- Robust NEMA 4X / IP66 enclosure
Accurate and Reliable Results with One Instrument
Regular monitoring of process parameters is essential to uphold product and operational specifications while ensuring consistent quality across all industries. Supplying real-time intelligent data to industrial control systems such as DCS or PLC significantly minimizes downtime and helps protect valuable company assets.

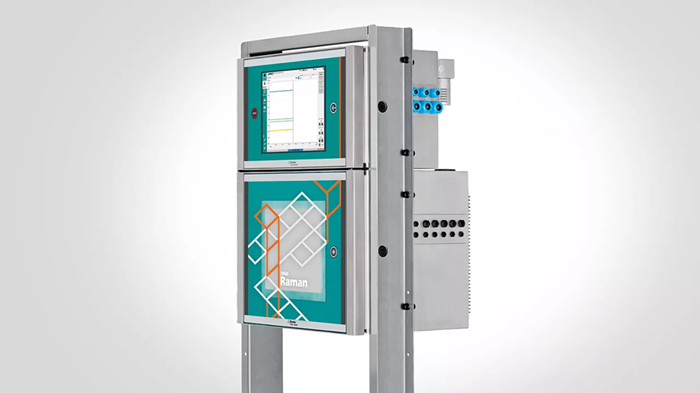

The 2060 Raman Analyzer operates with a 785 nm laser and fiber-optic probes, offering exceptional laser stability for dependable performance and reliable results over long periods.
More technical features:
- Temperature-stabilized, high-throughput spectrometer
- Precisely engineered multiplexer supporting up to five sample channels
- Advanced fluorescence mitigation algorithms (XTR)
Image Credit: Metrohm USA Inc.
One Software Suite for Any Challenge

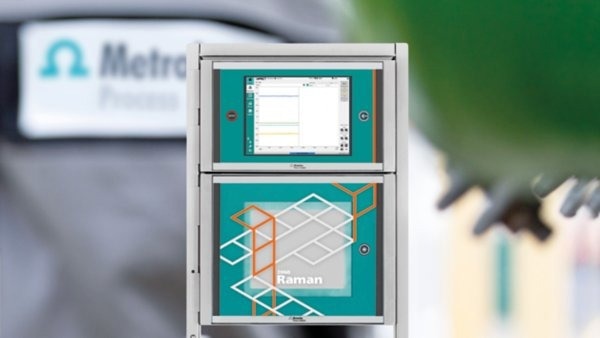

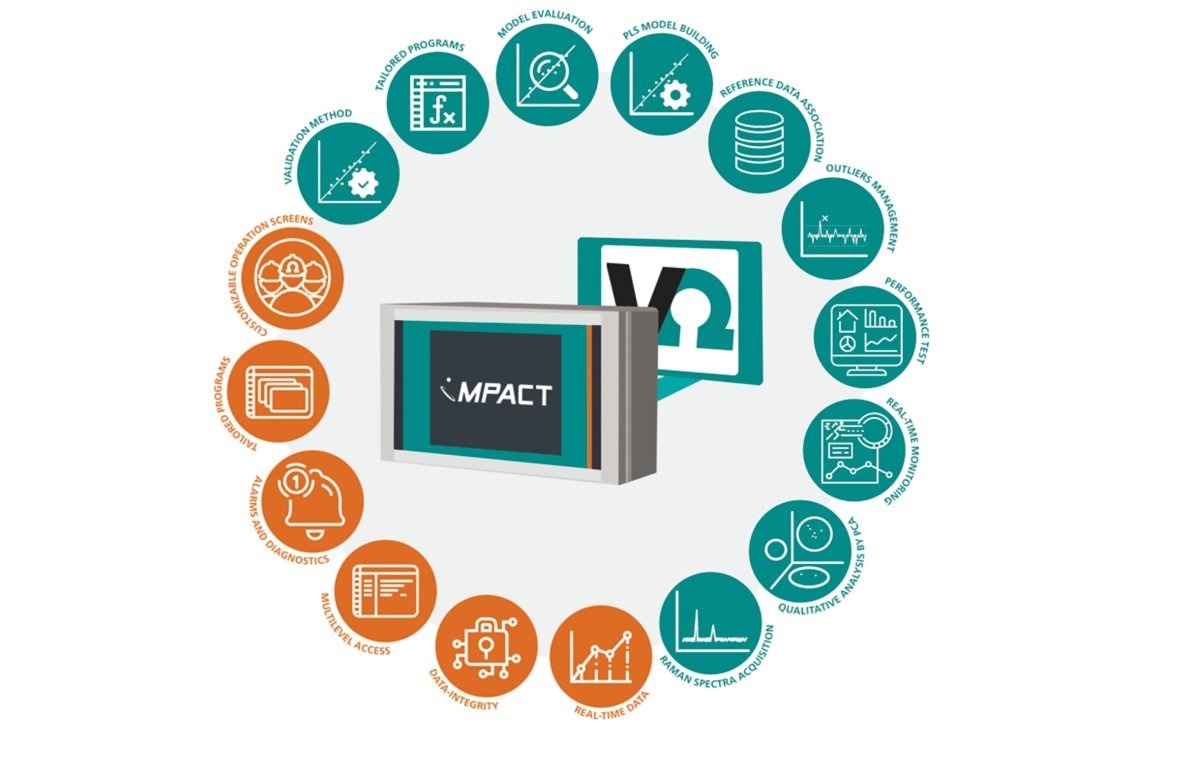

The 2060 Raman Analyzer is operated using Vision and IMPACT software. These proprietary and user-friendly software packages support comprehensive data acquisition, as well as qualitative and quantitative method development and diagnostic functions. A range of protocols is available for process control, including Discrete I/O with 4–20 mA, OPC, Modbus, and Profibus.
Image Credit: Metrohm USA Inc.
Prevent Process Upsets and Protect the Assets
Metrohm Process Analytics specializes in the engineering and delivery of customized solutions for hazardous environments, removing the need for manual sampling and thereby ensuring a safer workplace by preventing exposure to hazardous chemicals and conditions such as HF, exothermic epoxidation, high temperature and pressure, autopolymerization, and others.
Image Credit: Metrohm USA Inc.
Systems
2060 Raman Analyzer

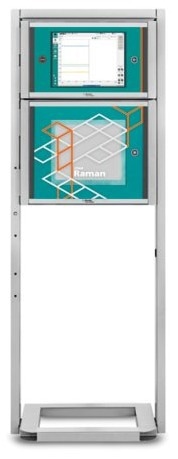

The 2060 Raman Analyzer is a non-destructive, inline process analyzer that uses Raman spectroscopy to provide accurate, real-time process monitoring.
Image Credit: Metrohm USA Inc.
Options and Upgrades
Sample Preconditioning
Reliable Sampling for Good Results
Metrohm Process Analytics can engineer and supply virtually any unit operation for sample preconditioning and can deliver a complete working solution for most industrial processes.
In addition to chemical analysis, factors such as sample preparation, preconditioning, and analyzer location are critical to the success of online and atline analysis. A full solution can be provided for nearly any application, including an analyzer combined with sample preparation or a complete turnkey package with shelter, piping, wiring, and interfacing. This approach enables seamless startup and on-site integration of the analyzer.
Software
The 2060 Raman Analyzer features dedicated software for automated spectroscopic analysis in online process control. It is designed to efficiently program and operate the analyzer for a wide range of industrial applications.
- The analyzer’s program execution is displayed in a clear graphical timeline
- Configurable alarms allow continuous monitoring of the analyzer’s status
- Data can be transmitted via various process communication protocols, including Modbus and Discrete I/O
- In the background, Vision software manages data analysis and presents the results in a clear and accessible format
