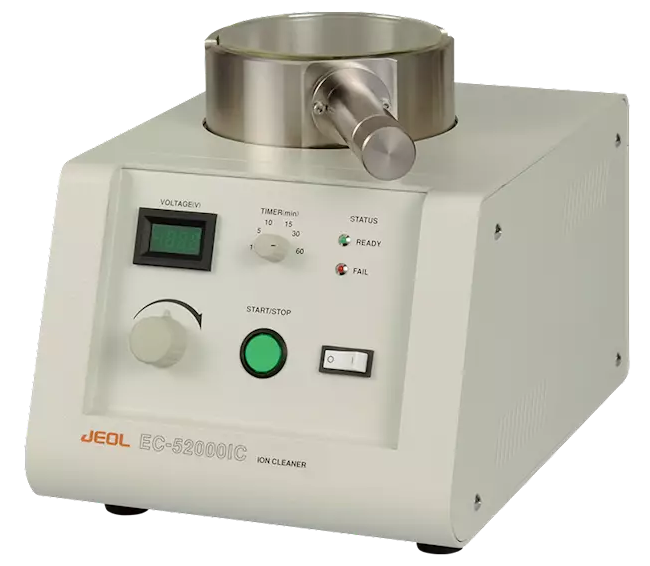

The EC-52000IC Ion Cleaner is designed to treat electron microscope specimens with a glow discharge, effectively removing hydrocarbon contaminants through a combination of physical and chemical reactions.
By cleaning the specimen surface, the Ion Cleaner helps prevent contamination that typically builds up when hydrocarbons accumulate under electron beam irradiation, ensuring clearer, more reliable imaging during electron microscopy.
Key Features
- Specimen treatment can be performed while the sample is mounted on the specimen holder.
- The cleaning process also operates without the need for any special gases.
Specifications
Source: JEOL USA, Inc.
| . |
. |
| Discharge method |
Planar electrode type |
| Working pressure |
35 to 40 Pa |
| Target |
Carbon |
| Vacuum chamber |
About 120 mm (I. D.) × About 40 mm (H) |
| Discharge voltage |
Variable |
| Timer |
1, 5, 10, 15, 30, 60 min |
| Rotary pump |
10 L/min |
