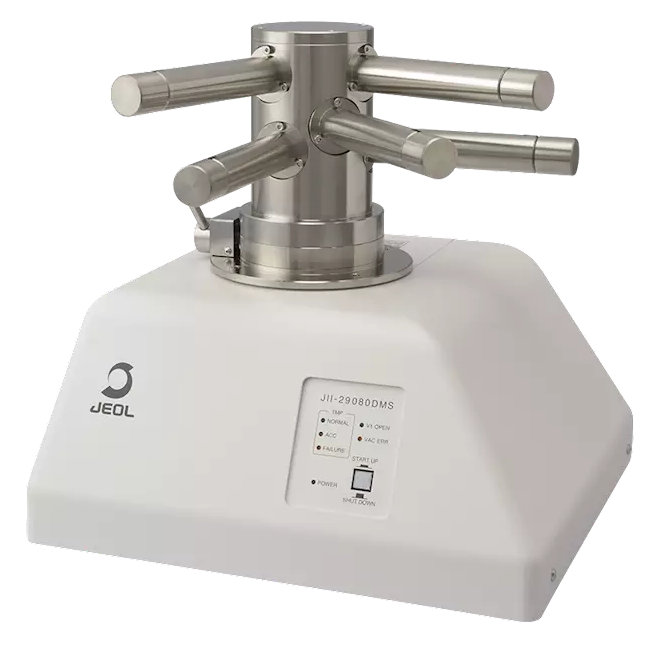

The JII-29080DMS is a vacuum holder station designed to store transmission electron microscope (TEM) sample holders in a clean, controlled environment.
Its vacuum exhaust system features a coolant-free turbomolecular pump (TMP) and an oil-free auxiliary pump, maintaining a dry atmosphere that helps keep specimen holders clean and contamination-free at all times.
Key Features
- Prevents atmospheric gas adsorption.
- User-friendly design allows for easy and error-free attachment, detachment, and handling of sample holders.
- Accommodates up to five TEM sample holders simultaneously.
- Clear LED indicators display EVAC and VENT status for straightforward operation.
Specifications
Source: JEOL USA, Inc.
| . |
. |
. |
| Ultimate Pressure |
5×10-4 Pa |
| Main exhaust pump |
Turbomolecular pump: Approx. 67 L/sec (N2) |
| Auxiliary exhaust pump |
Dry pump: approx. 20 L/minute |
| Number of holders installed |
5 |
| Power |
Single-phase AC 100 V, 50/60Hz, 0.6 kVA |
| Dimensions & Weight |
Substance |
410 (W) × 370 (D) × 410 (H) mm, approx. 20 kg |
Dry Pump
(Diaphragm Pump) |
160 (W) × 330 (D) × 220 (H) mm / Approx. 7.5kg |
| Room temperature |
20 ± 5 °C |
