JEOL's high-strength SiN film allows for the observation of a large, millimeter-scale area in sequence. It’s also ideal for viewing serially sliced sections, as it eliminates the invisible areas often caused by conventional TEM grids. The dedicated retainer makes it easy to perform Correlative Light and Electron Microscopy (CLEM).
To use the CLEM retainer (SiN Window Chip Starter Kit), the EM-21010 common specimen holder and SiN Window Chips (20 chips per case) must be purchased separately.
Specifications

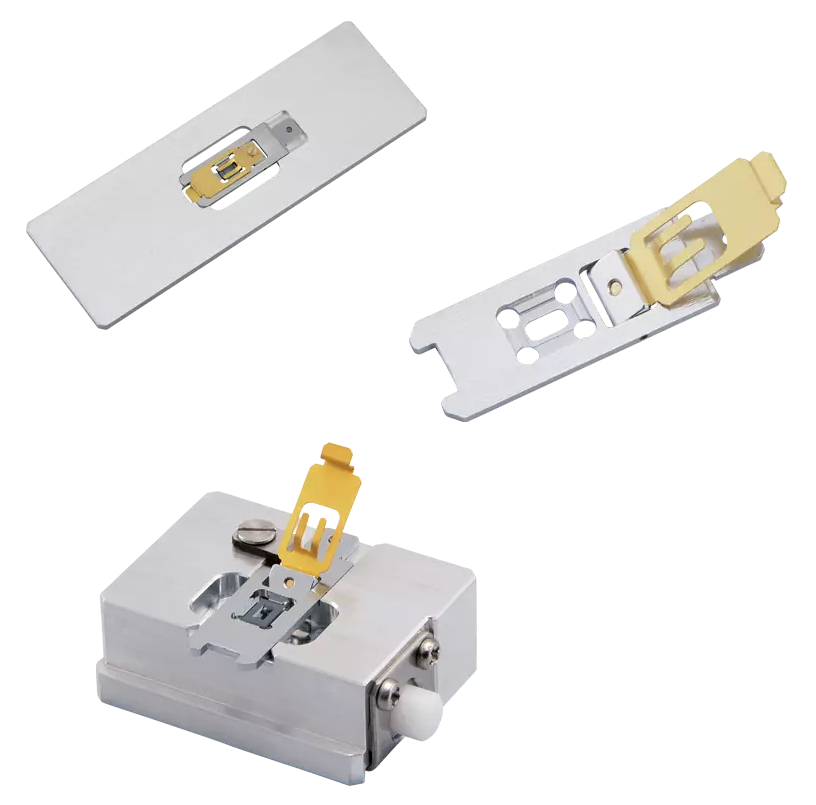

SiN Window Chip Common Holder Compatible Retainer
A retainer designed for the SiN Window Chip, used in combination with the EM-21010 common specimen holder.
- Number of SiN Window Chips: 1
- Applicable specimen holder: EM-21010 (SCSH) Common Specimen Holder
- Objective aperture: Applicable
SiN Window Chip Removal and Attachment Jig
Used to secure the retainer that had been withdrawn from the specimen holder.
- Number of retainers held: 1
- Applicable retainer: SiN Window Chip Common Holder Compatible Retainer
Retainer Holder for Optical Microscope
Designed to hold the retainer with a SiN Window Chip for examination under an optical microscope.
- Number of retainers held: 1
- Applicable structure type: Upright, inverted
- Applicable retainer: SiN Window Chip Common Holder Compatible Retainer
Consumables
- SiN Window Chip (20 chips/case) (P/N 783131836)
- Use a 1 × 2 mm2 SiN chip with a window to observe the specimen
- 1 case (P/N 783131836)
- 10 cases (P/N 783131844) Note: 10 % discounted
